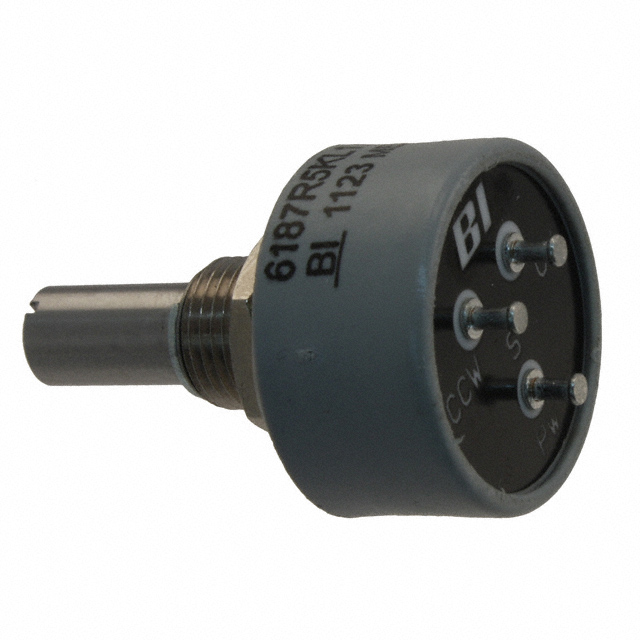

6187R5KL1.0LF

Active

TT Electronics/BI

POT 5K OHM 1W PLASTIC LINEAR

Search across all available documentation for this part.

Active

TT Electronics/BI

POT 5K OHM 1W PLASTIC LINEAR

Technical Specifications

Parameters and characteristics commom to parts in this series

POT 5K OHM 1W PLASTIC LINEAR

Part	Number of Gangs	Size - Body [diameter]	Size - Body [diameter]	Resistive Material	Actuator Length [x]	Actuator Length [x]	Rotation	Bushing Thread	Temperature Coefficient	Actuator Type	Number of Turns	Power (Watts)	Taper	Termination Style	Adjustment Type	Tolerance	Resistance (Ohms)	Resistance (Ohms)	Actuator Diameter	Actuator Diameter [diameter]
TT Electronics/BI 6187R5KL1.0LF	1	0.874 in	22.2 mm	Conductive Plastic	0.874 in	22.2 mm	Continuous	3/8-32	-400 ppm/°C	Slotted	1	1 W	Linear	Solder Turret	User Defined	10 %	5 kOhms
TT Electronics/BI 6187R5KL1.0ST	1	0.874 in	22.2 mm	Conductive Plastic	0.874 in	22.2 mm	Continuous	3/8-32	-400 ppm/°C	Slotted	1	1 W	Linear	Solder Turret	User Defined	10 %	5 kOhms
TT Electronics/BI 6187R10KL1.0LF	1	0.874 in	22.2 mm	Conductive Plastic	0.874 in	22.2 mm	Continuous	3/8-32	-400 ppm/°C	Slotted	1	1 W	Linear	Solder Turret	User Defined	10 %		10k
TT Electronics/BI 6187R20KL1.0LF	1	0.874 in	22.2 mm	Conductive Plastic	0.874 in	22.2 mm	Continuous	3/8-32	-400 ppm/°C	Slotted	1	1 W	Linear	Solder Turret	User Defined	10 %	20 kOhms		6.35 mm	0.25 in
TT Electronics/BI 6187R50KL1.0LF	1	0.874 in	22.2 mm	Conductive Plastic	0.874 in	22.2 mm	Continuous	3/8-32	-400 ppm/°C	Slotted	1	1 W	Linear	Solder Turret	User Defined	10 %	50 kOhms		6.35 mm	0.25 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 1W Solder Turret
