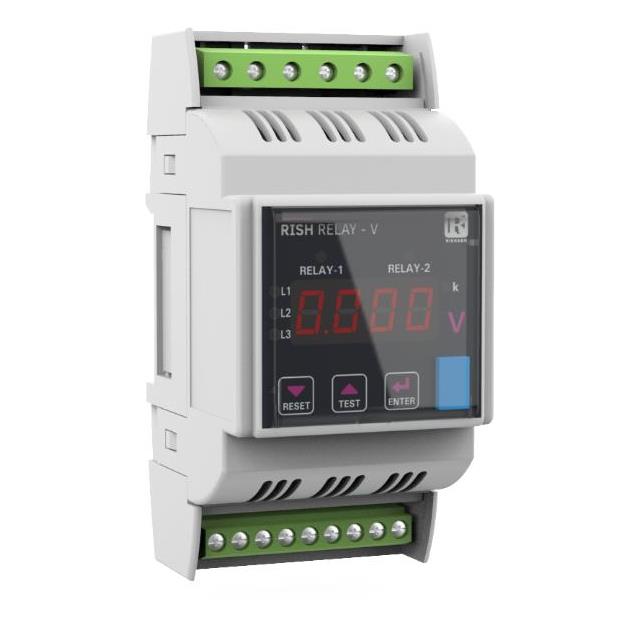

RISH RELAY V-1-3000-LA
ActiveRishabh Instruments
VOLTAGE PROTECTION RELAY 1-PHASE
RISH RELAY V-1-3000-LA
ActiveRishabh Instruments
VOLTAGE PROTECTION RELAY 1-PHASE
Description
General part information
RISH RELAY V-1-3000-LA
VOLTAGE PROTECTION RELAY 1-PHASE
Technical Specifications
Parameters and characteristics for this part
| Specification | RISH RELAY V-1-3000-LA |
|---|---|
| Delay Time (Maximum) | 30 Sec |
| Delay Time (Minimum) | 0 Sec |
| Features | Automatic Reset, Test Button, Manual Reset |
| Function | Phase Loss, Phase Imbalance, Overvoltage, Undervoltage |
| Mounting Type | DIN Rail |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -10 °C |
| Termination Style | Screw Terminal |
| Voltage - Supply | 60 VDC |
| Voltage - Supply (Maximum) | 40 VAC |
| Voltage - Supply (Minimum) | 20 VDC |
| Voltage - Supply (Range 1 Maximum) | 40 VAC |
| Voltage - Supply (Range 1 Minimum) | 20 VAC |
| Voltage - Supply (Range 2 Maximum) | 60 VDC |
| Voltage - Supply (Range 2 Minimum) | 60 VDC |
| Voltage - Supply Maximum | 40 VAC |
| Voltage - Supply Minimum | 20 VDC |
