Description
General part information

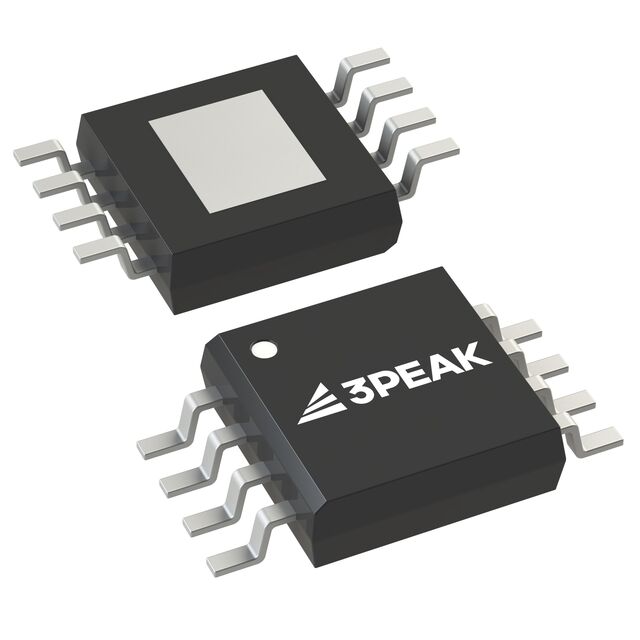

TPB4056B2X-EV1R
Charger IC Lithium Ion/Polymer 8-EMSOP
Technical Specifications
Parameters and characteristics for this part
| Specification | TPB4056B2X-EV1R |
|---|---|
| Battery Chemistry | Polymer, Lithium Ion |
| Battery Pack Voltage | 4.2 V |
| Charge Current - Max | 1 A |
| Current - Charging | Constant, Programmable |
| Fault Protection | Over Current, Over Temperature, Over-Under Voltage, Reverse Battery, Short Circuit |
| Mounting Type | Surface Mount |
| Number of Cells | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Features | Exposed Pad |
| Package Length | 0.118 in |
| Package Name | 8-EMSOP, 8-MSOP, 8-TSSOP |
| Package Width | 3 mm |
| Programmable Features | Voltage, Current |
| Voltage - Supply (Max) | 9.8 V |
