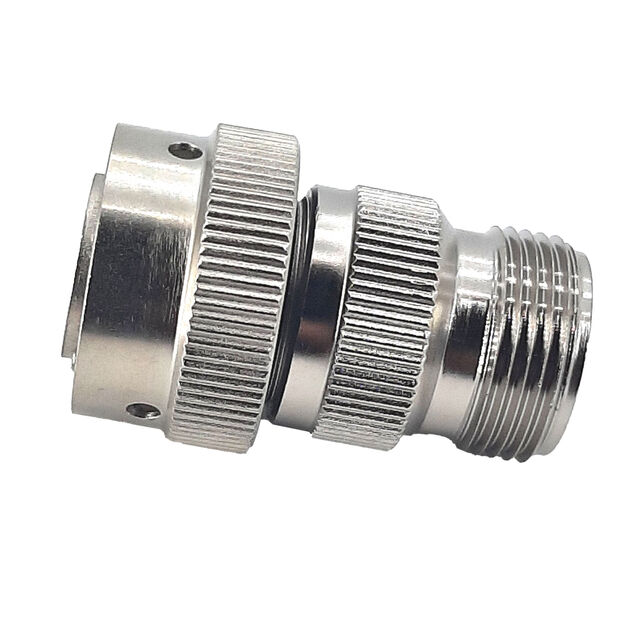

MSW06A20-39S-44
ActiveMilspecwest, LLC
PLUG, ENVIRONMENTAL, ELEC NICK
MSW06A20-39S-44
ActiveMilspecwest, LLC
PLUG, ENVIRONMENTAL, ELEC NICK
Description
General part information
MSW06A20-39S-44
39 Position Circular Connector Plug, Female Sockets Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | MSW06A20-39S-44 |
|---|---|
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Current Rating Options | 7.5A, 13A |
| Fastening Type | Bayonet Lock |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 39 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Shell Finish | Electroless Nickel |
| Shell Material | Aluminum |
| Shell Size - Insert (Maximum) | 39 |
| Shell Size - Insert (Minimum) | 20 |
| Termination | Solder |
| Voltage Rating | 800 V |
