Description
General part information

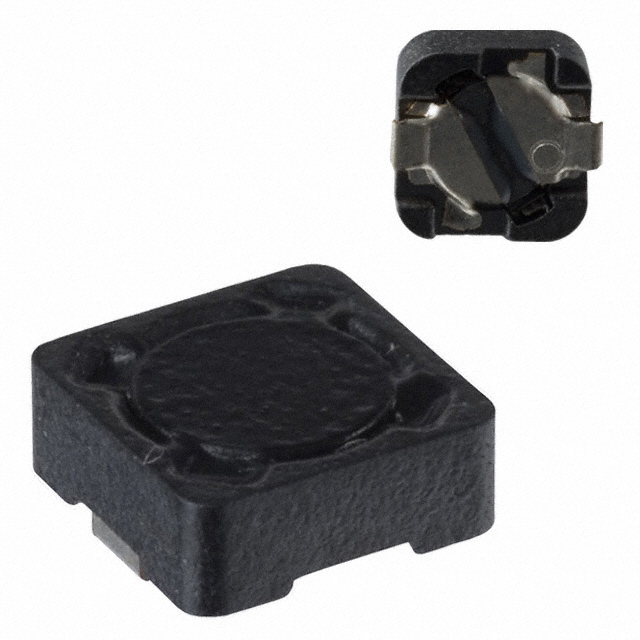

SPD74R-823M
82 µH Shielded Drum Core, Wirewound Inductor 1 A 430mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SPD74R-823M |
|---|---|
| Current - Saturation (Isat) | 1 A |
| Current Rating | 1 A |
| DC Resistance (DCR) (Max) | 430 mOhm |
| Height - Seated (Max) | 0.185 in |
| Inductance | 82 µH |
| Inductance Frequency - Test | 1 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.287 in |
| Size / Dimension Width | 0.287 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
