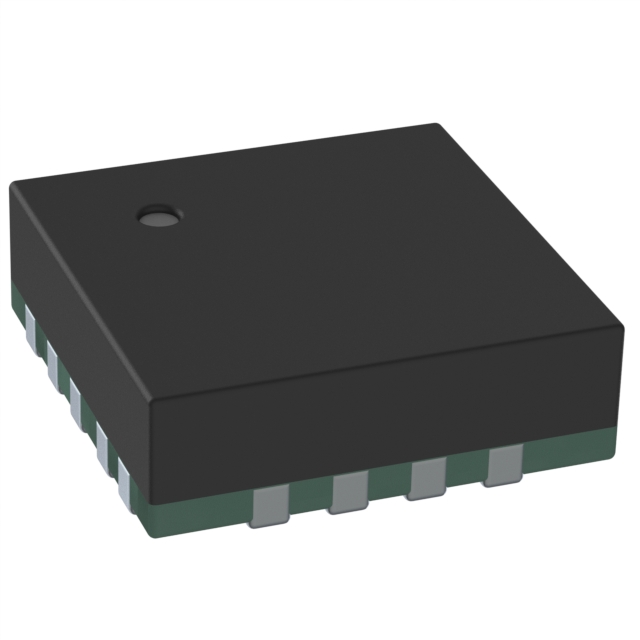

LTC3313JV#TRMPBF
Active5V, 15A SYNCHRONOUS STEP-DOWN SILENT SWITCHER IN 3MM × 3MM LQFN
Deep-Dive with AI
Search across all available documentation for this part.
LTC3313JV#TRMPBF
Active5V, 15A SYNCHRONOUS STEP-DOWN SILENT SWITCHER IN 3MM × 3MM LQFN
Technical Specifications
Parameters and characteristics for this part
| Specification | LTC3313JV#TRMPBF |
|---|---|
| Current - Output | 15 A |
| Frequency - Switching [Max] | 5 MHz |
| Frequency - Switching [Min] | 500 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 18-PowerTFQFN |
| Supplier Device Package | 18-LQFN (3x3) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 2.25 V |
| Voltage - Output (Max) [Max] | 5.5 V |
| Voltage - Output (Min/Fixed) [Min] | 0.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 500 | $ 6.11 | |
| 1000 | $ 5.89 | |||
Description
General part information
LTC3313 Series
The LTC3313 is a very small, low noise, monolithic step-down DC/DC converter capable of providing up to 15A of output current from a 2.25V to 5.5V input supply. The device employs the Silent Switcher architecture to achieve both low EMI and high efficiency at switching frequencies as high as 5MHz. For systems with higher power requirements, multiphasing parallel converters is readily implemented.The LTC3313 uses a constant frequency, peak current mode control architecture for fast transient response. A 500mV reference allows for low voltage outputs. 100% duty cycle operation delivers low drop out.Other features include a power good signal when the output is in regulation, a precision enable threshold, output overvoltage protection, thermal shutdown, a temperature monitor, clock synchronization, mode selection, and output short circuit protection. The device is available in a compact 18-pin 3mm × 3mm LQFN package.APPLICATIONSAutomotive/Industrial/CommunicationsServers, Telecom Power SuppliesDistributed DC Power Systems (POL)FPGA, ASIC, μP Core Supplies
