M1CXK-1636J
Active3M
IDC CABLE - MKC16K/MC16G/X
Deep-Dive with AI
Search across all available documentation for this part.
M1CXK-1636J
Active3M
IDC CABLE - MKC16K/MC16G/X
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M1CXK-1636J | M1CXK Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | - | Multiple, Twisted Pair (Flat), Ribbon, Multiple |
| Connector Type | Socket to Cable | Socket to Cable |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Features | Polarizing Key | Polarizing Key |
| Length [x] | 3 ft | 3 - 3.34 ft |
| Length [x] | 914.4 mm | 1.02 - 914.4 mm |
| Number of Positions | 16 | 16 |
| Number of Positions | - | 10 - 50 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
M1CXK Series
IDC CABLE - MKC14K/MC14G/X
| Part | Contact Finish | Number of Rows | Pitch - Cable | Pitch - Cable | Pitch - Connector | Pitch - Connector | Features | Cable Termination | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Length [x] | Length [x] | Shielding | Color | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Gold | 2 | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | Polarizing Key | IDC | 14 | 0.76 Ám | 30 Áin | Socket to Cable | 3 ft | 914.4 mm | Unshielded | |||
Gold | 2 | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | Polarizing Key | IDC | 26 | 0.76 Ám | 30 Áin | Socket to Cable | 3.34 ft | 1.02 m | Unshielded | Multiple, Twisted Pair (Flat) | ||
Gold | 2 | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | Polarizing Key | IDC | 0.76 Ám | 30 Áin | Socket to Cable | 3 ft | 914.4 mm | Unshielded | 16 | |||
Gold | 2 | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | Polarizing Key | IDC | 26 | 0.76 Ám | 30 Áin | Socket to Cable | 3 ft | 914.4 mm | Unshielded | |||
Gold | 2 | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | Polarizing Key | IDC | 20 | 0.76 Ám | 30 Áin | Socket to Cable | 3.34 ft | 1.02 m | Unshielded | Multiple, Twisted Pair (Flat) | ||
Gold | 2 | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | Polarizing Key | IDC | 24 | 0.76 Ám | 30 Áin | Socket to Cable | 3 ft | 914.4 mm | Unshielded | Multiple, Ribbon | ||
Gold | 2 | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | Polarizing Key | IDC | 14 | 0.76 Ám | 30 Áin | Socket to Cable | 3.34 ft | 1.02 m | Unshielded | Multiple, Twisted Pair (Flat) | ||
Gold | 2 | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | Polarizing Key | IDC | 40 | 0.76 Ám | 30 Áin | Socket to Cable | 3.34 ft | 1.02 m | Unshielded | Multiple, Twisted Pair (Flat) | ||
Gold | 2 | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | Polarizing Key | IDC | 10 | 0.76 Ám | 30 Áin | Socket to Cable | 3.34 ft | 1.02 m | Unshielded | Multiple, Twisted Pair (Flat) | ||
Gold | 2 | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | Polarizing Key | IDC | 50 | 0.76 Ám | 30 Áin | Socket to Cable | 3 ft | 914.4 mm | Unshielded | Multiple, Ribbon |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.06 | |
| 10 | $ 7.72 | |||
| 25 | $ 6.97 | |||
| 50 | $ 6.47 | |||
| 100 | $ 6.01 | |||
| 250 | $ 5.46 | |||
| 500 | $ 5.10 | |||
| 1000 | $ 4.77 | |||
Description
General part information
M1CXK Series

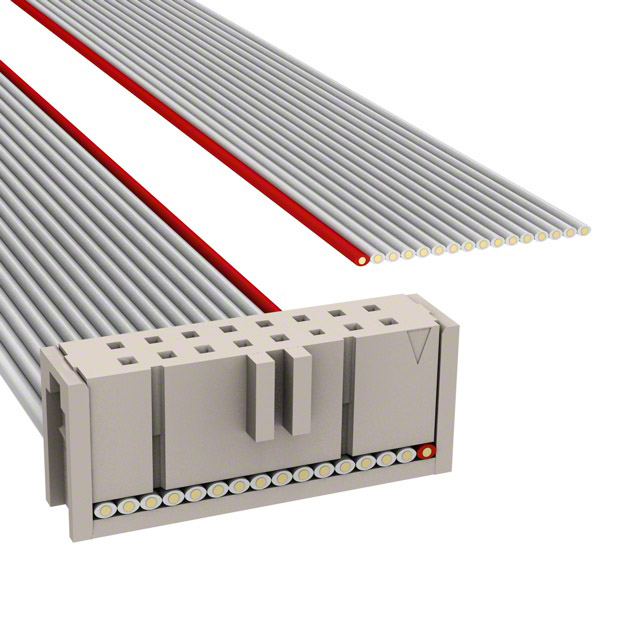

16 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)
