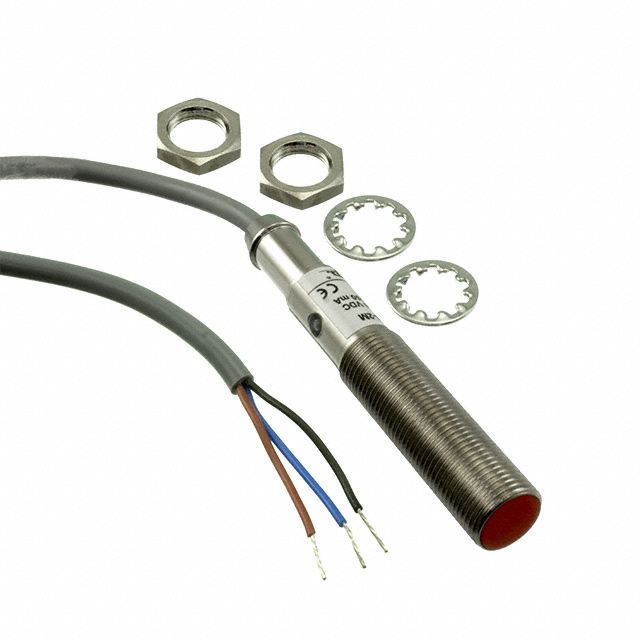

AIS12F02AN024-2M

Active

Altech Corporation

SENSOR PROX INDUCTIVE 2MM CYLIND

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AIS12F02AN024-2M

Active

Altech Corporation

SENSOR PROX INDUCTIVE 2MM CYLIND

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 52.98
		10	$ 44.62
		25	$ 41.83
		100	$ 40.43

Description

General part information

AIS12F02 Series

SENSOR PROX INDUCTIVE 2MM CYLIND

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AIS12F02AN024-2M	AIS12F02 Series

Indicator [custom]	LED	LED, No Indicator
Ingress Protection	NEMA 3, NEMA 1, NEMA 12, IP67, NEMA 13, NEMA 6, NEMA 4	NEMA 3, NEMA 1, NEMA 12, IP67, NEMA 13, NEMA 6, NEMA 4
Material - Body	Nickel-Plated Brass	Nickel-Plated Brass
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Output Type	NPN-NO, 3-Wire	NPN-NO, 3-Wire, NPN-NO, PNP-NO, 3-Wire, PNP-NC/NO, 3-Wire, 3-Wire, NPN-NC/NO
Package / Case	Cylinder, Threaded - M12	Cylinder, Threaded - M12
Response Frequency	1 kHz	1 - 400 kHz
Sensing Distance	0.079 in	0.079 in
Sensing Distance	2 mm	2 mm
Sensor Type	Inductive	Inductive
Shielding	Shielded	Shielded
Termination Style	Cable Leads	Connector, Cable Leads
Voltage - Supply [Max]	30 VDC	30 VDC
Voltage - Supply [Min]	10 VDC	10 VDC

AIS12F02 Series

SENSOR PROX INDUCTIVE 2MM CYLIND

Part	Termination Style	Shielding	Material - Body	Indicator [custom]	Response Frequency	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensing Distance	Sensing Distance	Package / Case	Output Type	Ingress Protection	Sensor Type	Operating Temperature [Max]	Operating Temperature [Min]
Altech Corporation AIS12F02AN024-Q65	Connector	Shielded	Nickel-Plated Brass	LED	1 kHz	30 VDC	10 VDC	0.079 in	2 mm	Cylinder, Threaded - M12	NPN-NO, 3-Wire	IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6	Inductive	70 °C	-25 °C
Altech Corporation AIS12F02AN024-5M	Cable Leads	Shielded		No Indicator		30 VDC	10 VDC			Cylinder, Threaded - M12	NPN-NO		Inductive
Altech Corporation AIS12F02RD024-2M	Cable Leads	Shielded	Nickel-Plated Brass	LED	40 Hz	30 VDC	10 VDC	0.079 in	2 mm	Cylinder, Threaded - M12	NPN-NO, 3-Wire	IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6	Inductive	70 °C	-25 °C
Altech Corporation AIS12F02AD024-2M	Cable Leads	Shielded	Nickel-Plated Brass	LED	400 Hz	30 VDC	10 VDC	0.079 in	2 mm	Cylinder, Threaded - M12	PNP-NO, 3-Wire	IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6	Inductive	70 °C	-25 °C
Altech Corporation AIS12F02UP024-2M	Cable Leads	Shielded	Nickel-Plated Brass	LED	1 kHz	30 VDC	10 VDC	0.079 in	2 mm	Cylinder, Threaded - M12	PNP-NC/NO, 3-Wire	IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6	Inductive	70 °C	-25 °C
Altech Corporation AIS12F02UP024-Q65	Connector	Shielded	Nickel-Plated Brass	LED	1 kHz	30 VDC	10 VDC	0.079 in	2 mm	Cylinder, Threaded - M12	PNP-NC/NO, 3-Wire	IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6	Inductive	70 °C	-25 °C
Altech Corporation AIS12F02AP024-2M	Cable Leads	Shielded	Nickel-Plated Brass	LED	1 kHz	30 VDC	10 VDC	0.079 in	2 mm	Cylinder, Threaded - M12	PNP-NO, 3-Wire	IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6	Inductive	70 °C	-25 °C
Altech Corporation AIS12F02AP024-Q65	Connector	Shielded	Nickel-Plated Brass	LED	1 kHz	30 VDC	10 VDC	0.079 in	2 mm	Cylinder, Threaded - M12	PNP-NO, 3-Wire	IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6	Inductive	70 °C	-25 °C
Altech Corporation AIS12F02UN024-Q65	Connector	Shielded	Nickel-Plated Brass	LED	1 kHz	30 VDC	10 VDC	0.079 in	2 mm	Cylinder, Threaded - M12	3-Wire, NPN-NC/NO	IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6	Inductive	70 °C	-25 °C
Altech Corporation AIS12F02AN024-2M	Cable Leads	Shielded	Nickel-Plated Brass	LED	1 kHz	30 VDC	10 VDC	0.079 in	2 mm	Cylinder, Threaded - M12	NPN-NO, 3-Wire	IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6	Inductive	70 °C	-25 °C
