MP22T1-C24-4070-WW-1-00

Active

New Energy

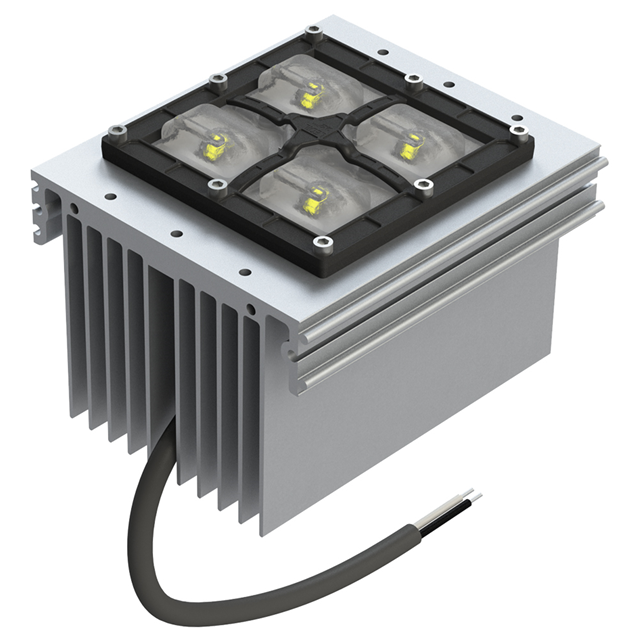

LED MOD XHP70.2 WHT RECT 4000K

Search across all available documentation for this part.

Active

New Energy

LED MOD XHP70.2 WHT RECT 4000K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module XHP70.2 White, Neutral Rectangle

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	MP22T1-C24-4070-WW-1-00	MP22T1 Series

CCT (K)	4000 K	4000 - 5000 K
CCT (K)	-	5-Step MacAdam Ellipse
Color	Neutral, White	Cool, White, Neutral, Warm
Configuration	Rectangle	Rectangle, Square
CRI (Color Rendering Index)	70	70
Current - Test	-	1.05 A
Features	IP67	IP67
Height [z]	3.8 in	3.8 - 99.31 mm
Lens Type	Domed	Domed, Flat
Lumens/Watt @ Current - Test	-	131 - 140 lm/W
Luminous Flux @ Current/Temperature	-	5050 - 6840 lm
Size / Dimension	-	5 in
Size / Dimension [x]	5 in	5 in
Size / Dimension [y]	110.99 mm	5 - 111 mm
Temperature - Test	-	85 °C
Type	LED Module	LED Module
Voltage - Forward (Vf) (Typ)	-	44.6 - 46.4 V

LED MOD XHP70 CL WHT RECT 5000K

Part	Configuration	Voltage - Forward (Vf) (Typ)	Features	Type	Temperature - Test	Lumens/Watt @ Current - Test	Current - Test	CRI (Color Rendering Index)	Height [z]	Luminous Flux @ Current/Temperature	Color	CCT (K)	CCT (K)	Size / Dimension [z]	Size / Dimension [y]	Lens Type	Size / Dimension [x]
New Energy MP22T1-C24-5070-T2-1-00	Rectangle	46.4 V	IP67	LED Module	85 °C	140 lm/W	1.05 A	70	99.31 mm	6840 lm	Cool, White	5000 K	5-Step MacAdam Ellipse	5 in	111 mm	Domed
New Energy MP22T1-C24-4070-WW-1-00	Rectangle		IP67	LED Module				70	3.8 in		Neutral, White	4000 K			110.99 mm	Domed	5 in
New Energy MP22T1-C24-4070-W-1-00	Rectangle	46.4 V	IP67	LED Module	85 °C	131 lm/W	1.05 A	70	99.31 mm	6360 lm	Neutral, White	4000 K		5 in	111 mm	Domed
New Energy MP22T1-C24-3070-WW-1-00	Rectangle		IP67	LED Module				70	3.8 in		Warm, White				110.99 mm	Domed	5 in
New Energy MP22T1-C24-5070-DWC-1-00	Square	44.6 V	IP67	LED Module				70	3.8 in	5050 lm	Cool, White	5000 K			5 "	Flat	5 in
