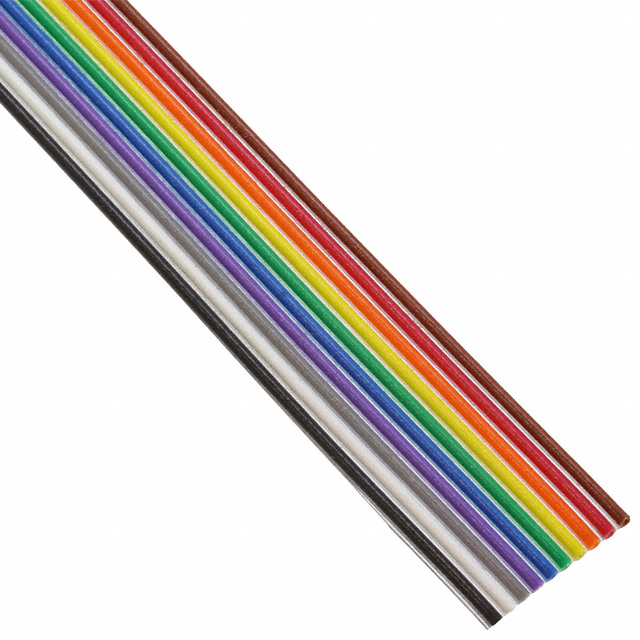

C3811/10 300
Active3M (TC)
CBL RIBN 10COND 0.05 MULTI 50'
Deep-Dive with AI
Search across all available documentation for this part.
C3811/10 300
Active3M (TC)
CBL RIBN 10COND 0.05 MULTI 50'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C3811/10 300 |
|---|---|
| Cable Type | Flat Cable |
| Conductor Material | Copper, Tinned |
| Conductor Strand | 34 AWG, 7 Strands |
| Features | Zippable |
| Insulation Resistance | 1 GOhms |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Multiple |
| Length | 25 ft, 50 ft, 1 ft |
| Length | 7.62 m, 15.24 m, 304.8 mm |
| Length [x] | 100 ft |
| Length [x] | 30.48 m |
| Number of Conductors | 10 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
| Ratings | UL Style 20462 |
| Ribbon Thickness | 0.042 in |
| Ribbon Thickness | 1.07 mm |
| Ribbon Width [custom] | 0.5 " |
| Ribbon Width [custom] | 12.7 mm |
| Shielding | Unshielded |
| Voltage | 300 V |
| Wire Gauge | 26 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.43 | |
| 1 | $ 46.63 | |||
| 1 | $ 24.63 | |||
| 1 | $ 7.15 | |||
| 1 | $ 86.27 | |||
| 5 | $ 68.83 | |||
| 5 | $ 19.61 | |||
| 5 | $ 1.14 | |||
| 5 | $ 5.69 | |||
| 5 | $ 37.08 | |||
| 10 | $ 5.17 | |||
| 10 | $ 62.29 | |||
| 10 | $ 1.03 | |||
| 10 | $ 17.80 | |||
| 10 | $ 33.64 | |||
| 25 | $ 54.81 | |||
| 25 | $ 15.61 | |||
| 25 | $ 0.91 | |||
| 25 | $ 29.57 | |||
| 25 | $ 4.54 | |||
| 50 | $ 4.12 | |||
| 50 | $ 0.82 | |||
| 50 | $ 49.52 | |||
| 50 | $ 26.76 | |||
| 50 | $ 14.20 | |||
| 100 | $ 3.73 | |||
| 100 | $ 12.86 | |||
| 100 | $ 0.75 | |||
| 100 | $ 24.25 | |||
| 100 | $ 45.16 | |||
Description
General part information
C3811 Series
Flat Ribbon Cable Multiple 10 Conductors 0.050" (1.27mm) Flat Cable 50.0' (15.24m)
