1013902
ActivePhoenix Contact

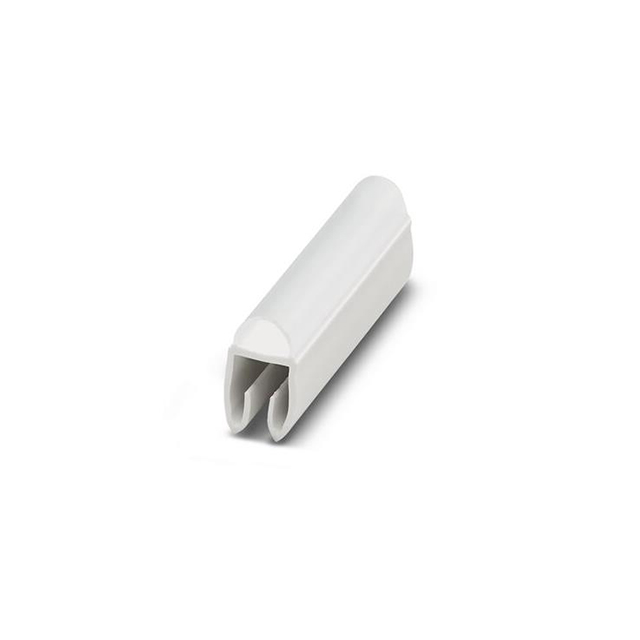

CONDUCTOR MARKER CARRIER, PATO 2/23 ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1013902
ActivePhoenix Contact
CONDUCTOR MARKER CARRIER, PATO 2/23 ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1013902 | PATO Series |
|---|---|---|
| Cable Diameter | - | 3.5 mm |
| Cable Diameter | - | 4.4 - 10 mm |
| Cable Diameter | - | 0.173 - 0.394 in |
| Cable Diameter [Max] [diameter] | 4.4 mm | 4.4 mm |
| Cable Diameter [Max] [diameter] | 0.173 in | 0.138 - 0.173 in |
| Cable Diameter [Min] [diameter] | 0.11 in | 0.079 - 0.11 in |
| Cable Diameter [Min] [diameter] | 2.8 mm | 2 - 2.8 mm |
| Color | Transparent | Transparent |
| Legend | Blank | Blank |
| Material | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Operating Temperature [Max] | 80 C | 80 C |
| Operating Temperature [Min] | -50 °C | -50 °C |
| Size [x] | 23 mm | 4 - 23 mm |
| Size [x] | 0.91 in | 0.16 - 0.91 " |
| Size [y] | 4 mm | 4 - 30 mm |
| Size [y] | 0.16 in | 0.16 - 1.18 " |
| Type | Wire Marker Carrier, Clip-On | Wire Marker, Clip-On, Wire Marker Carrier, Clip-On |
PATO Series
PATO 2/18
| Part | Legend | Material | Operating Temperature [Min] | Operating Temperature [Max] | Type | Color | Cable Diameter [Max] [diameter] | Cable Diameter [Min] [diameter] | Cable Diameter [Min] [diameter] | Cable Diameter [Max] [diameter] | Cable Diameter [Max] [diameter] | Size [y] | Size [x] | Size [x] | Size [y] | Cable Diameter [diameter] | Cable Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 0823753 | Blank | Poly-Vinyl Chloride (PVC) | -50 °C | 80 C | Wire Marker, Clip-On | Transparent | 4.4 mm | 0.11 in | 2.8 mm | 0.173 in | |||||||
Phoenix Contact 1013876 | Blank | Poly-Vinyl Chloride (PVC) | -50 °C | 80 C | Wire Marker Carrier, Clip-On | Transparent | 0.079 in | 2 mm | 0.138 in | 3.5 mm | 0.39 " | 10 mm | 0.16 " | 4 mm | |||
Phoenix Contact 1013135 | Blank | Poly-Vinyl Chloride (PVC) | -50 °C | 80 C | Wire Marker Carrier, Clip-On | Transparent | 0.59 in | 4 mm | 0.16 " | 15 mm | 4.4 mm, 8 mm | 0.173 in, 0.315 in | |||||
Phoenix Contact 1013892 | Blank | Poly-Vinyl Chloride (PVC) | -50 °C | 80 C | Wire Marker Carrier, Clip-On | Transparent | 0.079 in | 2 mm | 0.138 in | 3.5 mm | 0.16 in | 23 mm | 0.91 in | 4 mm | |||
Phoenix Contact 1013119 | Blank | Poly-Vinyl Chloride (PVC) | -50 °C | 80 C | Wire Marker Carrier, Clip-On | Transparent | 0.079 in | 2 mm | 0.138 in | 3.5 mm | 0.59 in | 4 mm | 0.16 " | 15 mm | |||
Phoenix Contact 1013902 | Blank | Poly-Vinyl Chloride (PVC) | -50 °C | 80 C | Wire Marker Carrier, Clip-On | Transparent | 4.4 mm | 0.11 in | 2.8 mm | 0.173 in | 0.16 in | 23 mm | 0.91 in | 4 mm | |||
Phoenix Contact 1013148 | Blank | Poly-Vinyl Chloride (PVC) | -50 °C | 80 C | Wire Marker Carrier, Clip-On | Transparent | 0.59 in | 4 mm | 0.16 " | 15 mm | 6.7 mm, 10 mm | 0.264 in, 0.394 in | |||||
Phoenix Contact 0827082 | Blank | Poly-Vinyl Chloride (PVC) | -50 °C | 80 C | Wire Marker Carrier, Clip-On | Transparent | 4.4 mm | 0.11 in | 2.8 mm | 0.173 in | 0.47 " | 4 mm | 0.16 " | 12 mm | |||
Phoenix Contact 1013889 | Blank | Poly-Vinyl Chloride (PVC) | -50 °C | 80 C | Wire Marker Carrier, Clip-On | Transparent | 4.4 mm | 0.11 in | 2.8 mm | 0.173 in | 0.39 " | 10 mm | 0.16 " | 4 mm | |||
Phoenix Contact 0822505 | Blank | Poly-Vinyl Chloride (PVC) | -50 °C | 80 C | Wire Marker Carrier, Clip-On | Transparent | 4.4 mm | 0.11 in | 2.8 mm | 0.173 in | 1.18 in | 4 mm | 0.16 " | 30 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PATO Series
Wire Marker Carrier, Clip-On 0.91" W x 0.16" L (23.0mm x 4.0mm) Transparent Poly-Vinyl Chloride (PVC)
