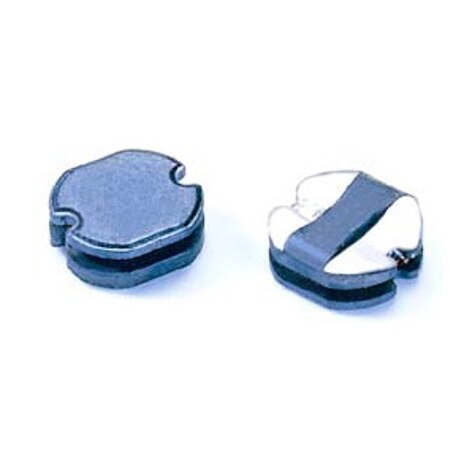

SC104-561
ActiveSignal Transformer
POWER INDUCTORS - SMD INDUCTOR SMD 560UH 0.32A 1.904 OHMS1KHZ
SC104-561
ActiveSignal Transformer
POWER INDUCTORS - SMD INDUCTOR SMD 560UH 0.32A 1.904 OHMS1KHZ
Description
General part information
SC104-561
560 µH Unshielded Inductor 430 mA 1.904Ohm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SC104-561 |
|---|---|
| Current - Saturation (Isat) | 0.32 mA |
| Current Rating | 430 mA |
| DC Resistance (DCR) (Max) | 1.904 Ohm |
| Height - Seated (Max) | 0.169 in |
| Inductance | 560 µH |
| Inductance Frequency - Test | 1 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.406 in |
| Size / Dimension Width | 0.366 in |
| Tolerance | 20 % |
