285-191
ActiveWAGO Corporation

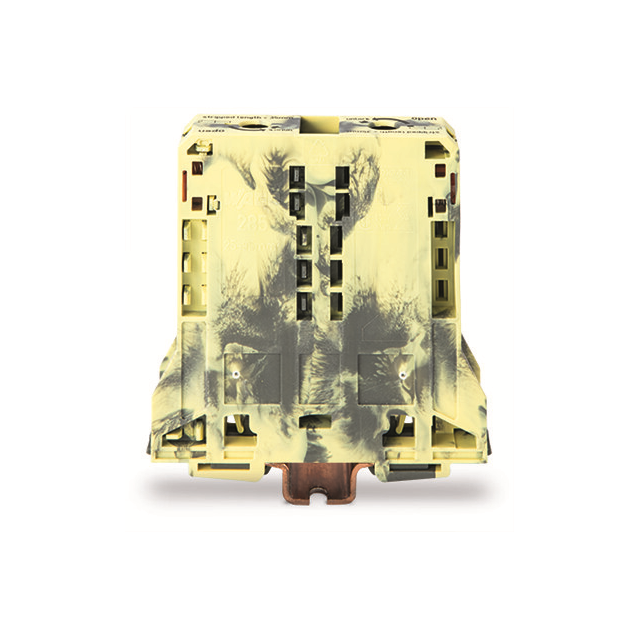

CONN FEED-THROUGH TERMINAL BLOCK 2 POS SPRING CLAMP DIN RAIL 232A BOX
285-191
ActiveWAGO Corporation
CONN FEED-THROUGH TERMINAL BLOCK 2 POS SPRING CLAMP DIN RAIL 232A BOX
Description
General part information
285-191
Terminal Block Connector 2 Position Feed Through Gray, Yellow 4/0-4 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 285-191 |
|---|---|
| Color | Yellow, Gray |
| Current - IEC | 232 A |
| Current - UL | 200 A |
| Material - Insulation | Polyamide, PA66, Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Stripping Length | 35 mm |
| Terminal Width | 25 mm |
| Termination Style | Push In, Spring |
| Type | Feed Through |
| Voltage - IEC | 1.5 kV |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG | 4/0-4 AWG |
| Wire Gauge or Range - mm² (Maximum) | 95 mm² |
| Wire Gauge or Range - mm² (Minimum) | 25 mm² |
