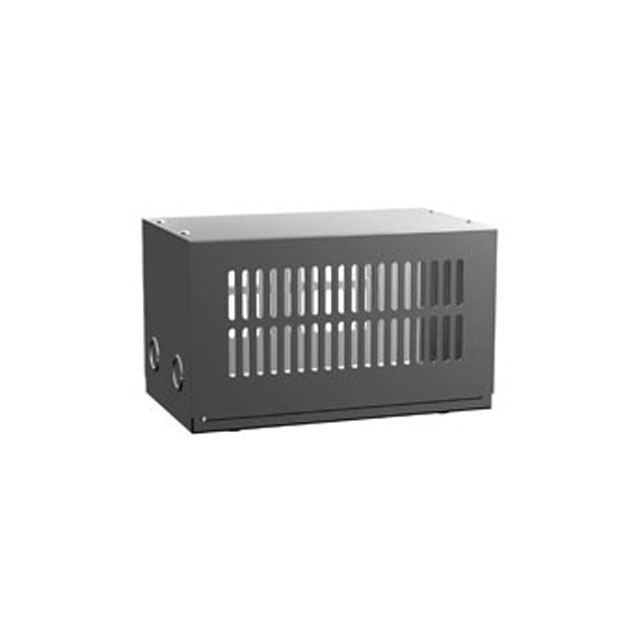

1416G

Active

Hammond Manufacturing

BOX STEEL GRAY 10"L X 4"W

Search across all available documentation for this part.

Active

Hammond Manufacturing

BOX STEEL GRAY 10"L X 4"W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 53.60

General part information

Box Metal, Steel Gray U Shaped Pieces 10.000" L x 4.000" W (254.00mm x 101.60mm) X 4.000" (101.60mm)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

BOX STEEL GRAY 20"L X 10"W

Part	Material	Height [z]	Height [z]	Color	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Ratings	Design	Weight	Weight	Area (L x W)	Area (L x W)	Thickness	Features	Container Type	Size / Dimension [y]	Area (L x W) [custom]	Area (L x W) [custom]
Hammond Manufacturing 1416T	Metal, Steel	10 in	254 mm	Gray	10 in	508 mm	254 mm	20 "	NEMA 1	U Shaped Pieces	6.4 kg	14 lb	200 in˛	1290 cm˛	18 Gauge	Vented Panels	Box
Hammond Manufacturing 1416E	Metal, Steel	101.6 mm	101.6 mm	Gray	4 "	152.4 mm		6 in	NEMA 1	U Shaped Pieces	907.2 g	2 lbs			18 Gauge	Vented Panels	Box	101.6 mm	155 cm²	24 in²
Hammond Manufacturing 1416Q	Metal, Steel	8 "	203.2 mm	Gray	10 in	508 mm	254 mm	20 "	NEMA 1	U Shaped Pieces	5.4 kg	12 lbs	200 in˛	1290 cm˛	18 Gauge	Vented Panels	Box
Hammond Manufacturing 1416I	Metal, Steel	5.86 in	148.84 mm	Gray	6 "	254 mm	152.4 mm	10 in	NEMA 1	U Shaped Pieces	1.8 kg	4 lbs	60 in²	387 cm²	18 Gauge	Vented Panels	Box
Hammond Manufacturing 1416G	Metal, Steel	101.6 mm	101.6 mm	Gray	4 "	254 mm	101.6 mm	10 in	NEMA 1	U Shaped Pieces	907.2 g	2 lbs	40 in²	258 cm²	18 Gauge	Vented Panels	Box
