0009185954

Obsolete

Molex

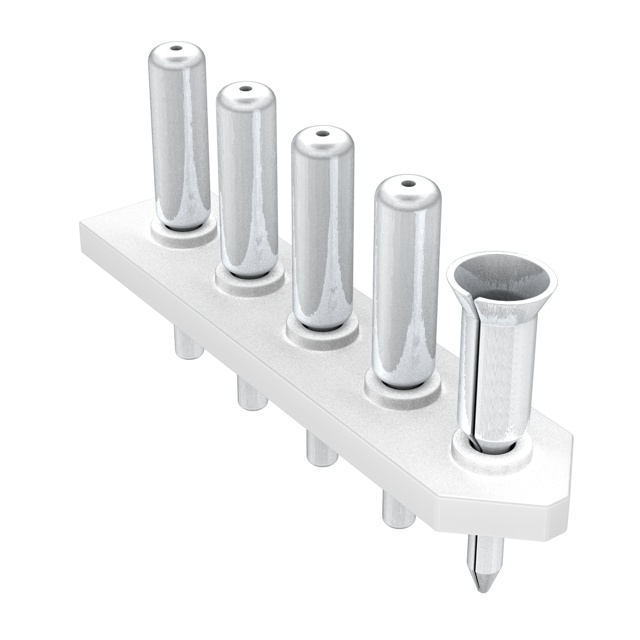

CONN HEADER VERT 5POS 5.03MM

Search across all available documentation for this part.

Obsolete

Molex

CONN HEADER VERT 5POS 5.03MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Through Hole 5 position 0.198" (5.03mm)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	0009185954	000918 Series

	-	-
Applications	Telecommunications, General Purpose	Telecommunications, General Purpose
Connector Type	Header	Header
Contact Finish - Post	Tin	Tin
Contact Length - Post	0.172 in	0.172 in
Contact Length - Post	4.37 mm	4.37 mm
Contact Shape	Circular	Circular
Contact Type	Male Pin, Female Socket	Male Pin, Female Socket
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Natural	Natural
Insulation Height	0.093 in	0.093 in
Insulation Height	2.38 mm	2.38 mm
Insulation Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	-	6 - 9
Number of Positions Loaded	3	3
Number of Positions Loaded	-	All
Number of Rows	1	1 - 3
Pitch - Mating	5.03 mm	5.03 mm
Pitch - Mating	0.198 in	0.198 in
Row Spacing - Mating	-	0.198 in
Row Spacing - Mating	-	5.03 mm
Shrouding	Unshrouded	Unshrouded
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder

CONN HEADER VERT 6POS 5.03MM

Part	Connector Type	Applications	Insulation Height	Insulation Height	Contact Shape	Contact Type	Number of Positions	Number of Positions Loaded	Termination	Pitch - Mating	Pitch - Mating	Style	Insulation Color	Material Flammability Rating	Fastening Type	Insulation Material	Number of Rows	Shrouding	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Number of Positions Loaded
Molex 0009185069	Header	General Purpose, Telecommunications	0.093 in	2.38 mm	Circular	Female Socket, Male Pin	6	All	Solder	5.03 mm	0.198 in	Board to Cable/Wire	Natural	UL94 V-0	Push-Pull	Polyamide (PA66), Nylon 6/6	2	Unshrouded	Through Hole	0.198 in	5.03 mm	Tin	0.172 in	4.37 mm
Molex 0009185121
Molex 0009185098	Header	General Purpose, Telecommunications	0.093 in	2.38 mm	Circular	Female Socket, Male Pin	9	All	Solder	5.03 mm	0.198 in	Board to Cable/Wire	Natural	UL94 V-0	Push-Pull	Polyamide (PA66), Nylon 6/6	3	Unshrouded	Through Hole	0.198 in	5.03 mm	Tin	0.172 in	4.37 mm
Molex 0009185954	Header	General Purpose, Telecommunications	0.093 in	2.38 mm	Circular	Female Socket, Male Pin			Solder	5.03 mm	0.198 in	Board to Cable/Wire	Natural	UL94 V-0	Push-Pull	Polyamide (PA66), Nylon 6/6	1	Unshrouded	Through Hole			Tin	0.172 in	4.37 mm	3
