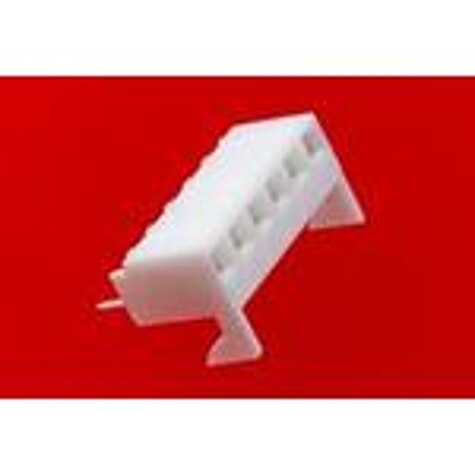

Specification	0022182203

Applications	Medical, Automotive, Telecommunications, General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	20 Ąin
Contact Finish Thickness - Post	2 µin
Contact Length - Post	0.132 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Female, Cat Ear, Non-Gendered
Current Rating	2.5 A
Fastening Type	Push-Pull
Features	Board Hooks
Insulation Color	White
Insulation Height	0.311 in
Insulation Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.1 in
Style	Board, Board or Cable
Termination	Solder
Voltage Rating	250 V

002218 Series

Part	Number of Rows	Insulation Color	Connector Type	Fastening Type	Current Rating	Mounting Type	Pitch - Mating	Operating Temperature (Max)	Operating Temperature (Min)	Insulation Height	Style	Contact Finish - Post	Voltage Rating	Termination	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Type	Number of Positions Loaded	Number of Positions	Contact Length - Post	Contact Shape	Contact Finish Thickness - Post	Applications	Contact Material	Insulation Material	Features
Molex 0022182066	1	White	Receptacle	Push-Pull	2.5 A	Through Hole	0.1 in	80 °C	-40 °C	0.311 in	Board Board or Cable	Gold	250 V	Solder	UL94 V-0	20 Ąin	Gold	Cat Ear Female Non-Gendered	All	6	0.132 in	Square	2 µin	Automotive General Purpose Medical Telecommunications	Brass	Nylon Polyamide (PA)
Molex 0022182041	1	White	Receptacle	Push-Pull	2.5 A	Through Hole	0.1 in	80 °C	-40 °C	0.311 in	Board Board or Cable	Tin	250 V	Solder	UL94 V-0	15 µin	Gold	Cat Ear Female Non-Gendered	All	4	0.132 in	Square	100 Ąin	Automotive General Purpose Medical Telecommunications	Brass	Nylon Polyamide (PA)	Board Hooks
Molex 0022182071	1	White	Receptacle	Push-Pull	2.5 A	Through Hole	0.1 in	80 °C	-40 °C	0.311 in	Board Board or Cable	Tin	250 V	Solder	UL94 V-0	15 µin	Gold	Cat Ear Female Non-Gendered	All	7	0.132 in	Square	100 Ąin	Automotive General Purpose Medical Telecommunications	Brass	Nylon Polyamide (PA)	Board Hooks
Molex 0022182253	1	White	Receptacle	Push-Pull	2.5 A	Through Hole	0.1 in	80 °C	-40 °C	0.311 in	Board Board or Cable	Gold	250 V	Solder	UL94 V-0	20 Ąin	Gold	Cat Ear Female Non-Gendered	All	25	0.132 in	Square	2 µin	Automotive General Purpose Medical Telecommunications	Brass	Nylon Polyamide (PA)	Board Hooks
Molex 0022182103	1	White	Receptacle	Push-Pull	2.5 A	Through Hole	0.1 in	80 °C	-40 °C	0.311 in	Board Board or Cable	Gold	250 V	Solder	UL94 V-0	20 Ąin	Gold	Cat Ear Female Non-Gendered	All	10	0.132 in	Square	2 µin	Automotive General Purpose Medical Telecommunications	Brass	Nylon Polyamide (PA)	Board Hooks
Molex 0022182083	1	White	Receptacle	Push-Pull	2.5 A	Through Hole	0.1 in	80 °C	-40 °C	0.311 in	Board Board or Cable	Gold	250 V	Solder	UL94 V-0	20 Ąin	Gold	Cat Ear Female Non-Gendered	All	8	0.132 in	Square	2 µin	Automotive General Purpose Medical Telecommunications	Brass	Nylon Polyamide (PA)	Board Hooks
Molex 0022182093	1	White	Receptacle	Push-Pull	2.5 A	Through Hole	0.1 in	80 °C	-40 °C	0.311 in	Board Board or Cable	Gold	250 V	Solder	UL94 V-0	20 Ąin	Gold	Cat Ear Female Non-Gendered	All	9	0.132 in	Square	2 µin	Automotive General Purpose Medical Telecommunications	Brass	Nylon Polyamide (PA)	Board Hooks
Molex 0022182101	1	White	Receptacle	Push-Pull	2.5 A	Through Hole	0.1 in	80 °C	-40 °C	0.311 in	Board Board or Cable	Tin	250 V	Solder	UL94 V-0	15 µin	Gold	Cat Ear Female Non-Gendered	All	10	0.132 in	Square	100 Ąin	Automotive General Purpose Medical Telecommunications	Brass	Nylon Polyamide (PA)	Board Hooks
Molex 0022187063	1	White	Receptacle	Push-Pull	2.5 A	Through Hole	0.1 in	80 °C	-40 °C	0.311 in	Board Board or Cable	Tin	250 V	Solder	UL94 V-0	15 µin	Gold	Cat Ear Female Non-Gendered	All	6	0.132 in	Square	100 Ąin	Automotive General Purpose Medical Telecommunications	Brass	Nylon Polyamide (PA)	Board Hooks
Molex 0022187043	1	White	Receptacle	Push-Pull	2.5 A	Through Hole	0.1 in	80 °C	-40 °C	0.311 in	Board Board or Cable	Tin	250 V	Solder	UL94 V-0	15 µin	Gold	Cat Ear Female Non-Gendered	All	4	0.132 in	Square	100 Ąin	Automotive General Purpose Medical Telecommunications	Brass	Nylon Polyamide (PA)	Board Hooks
