704.124.0

Active

EAO

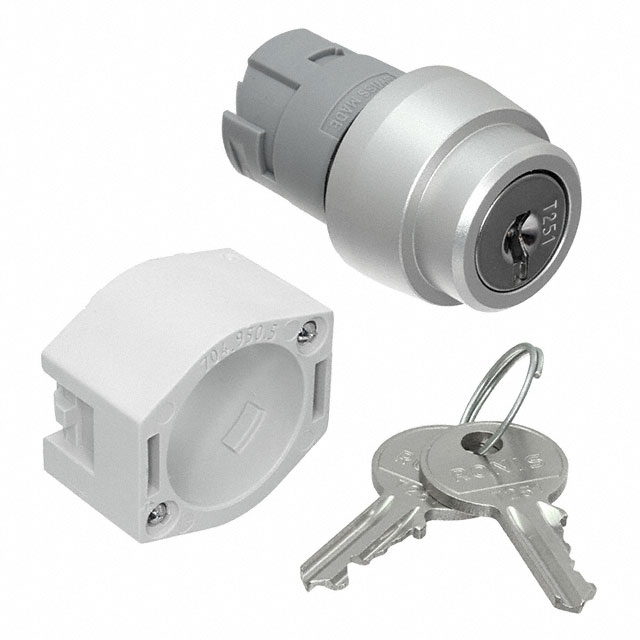

KEYLOCK SWITCH-ACTUATOR 3 POSITIONS NATURAL MAINTAINED(A)-REST(A)-MOMENTARY D29 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

EAO

KEYLOCK SWITCH-ACTUATOR 3 POSITIONS NATURAL MAINTAINED(A)-REST(A)-MOMENTARY D29 ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	704.124.0

(Select First, Then Apply Filters) Compatible Series	04, EAO
Actuator Type	Keylock
Illumination	Non-Illuminated
Panel Cutout Dimensions	22.3 mm
Requires	Contact Block(s)
Type	Momentary, Maintained

KEYLOCK SWITCH-ACTUATOR 3 POSITIONS NATURAL MAINTAINED(A)-REST(A)-MOMENTARY D29 ROHS COMPLIANT: YES

Part	Panel Cutout Dimensions	Actuator Type	Requires	(Select First, Then Apply Filters) Compatible Series	Illumination	Type
EAO 704.124.0	22.3 mm	Keylock	Contact Block(s)	04, EAO	Non-Illuminated	Maintained, Momentary

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Configurable Switch Body Keylock Non-Illuminated
