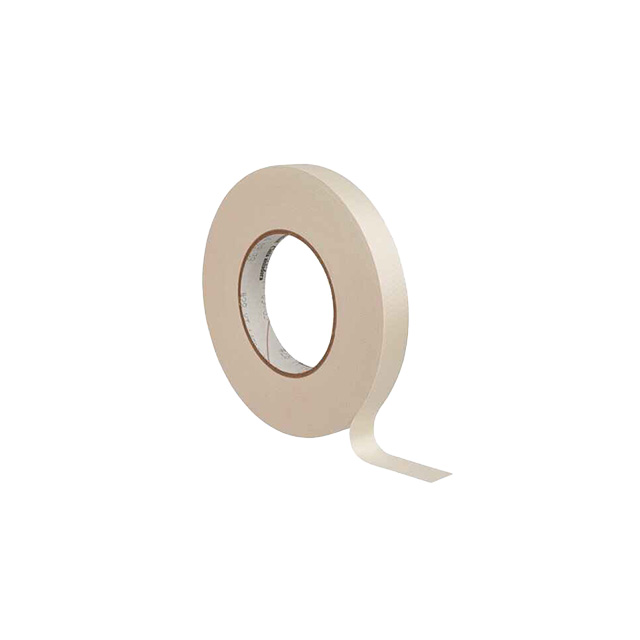

Specification	3M 28 0.47" X 72YD

Adhesive	Rubber
Backing	Acetate Cloth
Carrier	Acetate Cloth
Color	White
Length (ft)	216 ft
Length (yd)	72 yd
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Tape Type	Cloth Tape
Temperature Range (Max)	221 °F
Temperature Range (Min)	0 °C
Thickness	0.008 in
Width	0.47 in

3M 28 Series

Part	Shelf Life Start	Shelf Life	Temperature Range (Max)	Adhesive	Thickness	Tape Type	Width	Length (yd)	Length (ft)	Backing	Carrier	Color
3M (TC) 3M 28 0.188" X 72YD (PK-2)	Date of Manufacture	60 Months	221 °F	Rubber	0.008 in	Cloth Tape	0.19 in	72 yd	216 ft	Acetate Cloth	Acetate Cloth	White
3M (TC) 3M 28 2.25" X 72YD	Date of Manufacture	60 Months	221 °F	Rubber	0.008 in	Cloth Tape	2.25 in	72 yd	216 ft	Acetate Cloth	Acetate Cloth	White
3M (TC) 3M 28 8" X 72YD	Date of Manufacture	60 Months	221 °F	Rubber	0.008 in	Cloth Tape	8 in	72 yd	216 ft	Acetate Cloth	Acetate Cloth	White
3M (TC) 3M 28 3" X 72YD	Date of Manufacture	60 Months	221 °F	Rubber	0.008 in	Cloth Tape	3 in	72 yd	216 ft	Acetate Cloth	Acetate Cloth	White
3M (TC) 3M 28 0.71" X 72YD	Date of Manufacture	60 Months	221 °F	Rubber	0.008 in	Cloth Tape	0.71 in	72 yd	216 ft	Acetate Cloth	Acetate Cloth	White
3M (TC) 3M 28 1.5" X 72YD	Date of Manufacture	60 Months	221 °F	Rubber	0.008 in	Cloth Tape	1.5 in	72 yd	216 ft	Acetate Cloth	Acetate Cloth	White
3M (TC) 3M 28 1.75" X 72YD	Date of Manufacture	60 Months	221 °F	Rubber	0.008 in	Cloth Tape	1.75 in	72 yd	216 ft	Acetate Cloth	Acetate Cloth	White
3M (TC) 3M 28 10" X 72YD	Date of Manufacture	60 Months	221 °F	Rubber	0.008 in	Cloth Tape	10 in	72 yd	216 ft	Acetate Cloth	Acetate Cloth	White
3M (TC) 3M 28 12" X 72YD	Date of Manufacture	60 Months	221 °F	Rubber	0.008 in	Cloth Tape	12 in	72 yd	216 ft	Acetate Cloth	Acetate Cloth	White
3M (TC) 28-0.75-72	Date of Manufacture	60 Months	221 °F	Rubber	0.008 in	Cloth Tape	0.75 in	72 yd	216 ft	Acetate Cloth	Acetate Cloth	White
