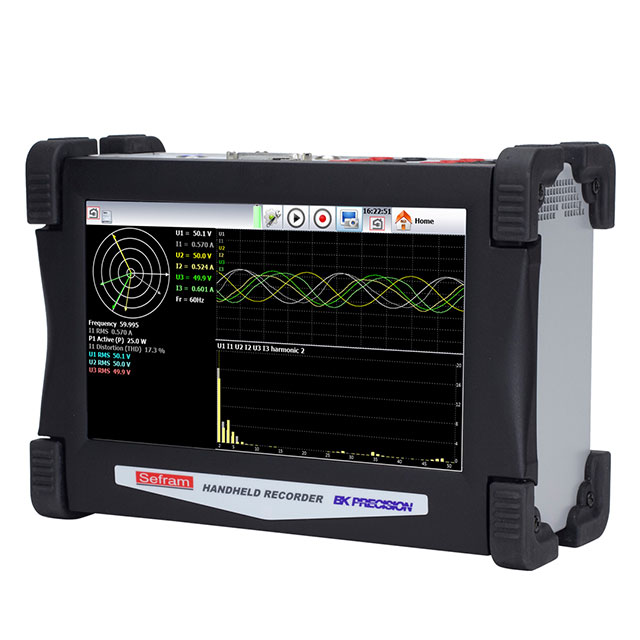

DAS60
ActiveB&K PRECISION
DATA ACQUISITION UNIT, 6 CHANNELS, 1 MSPS, 1 KV, 100 KHZ, 295 MM
DAS60
ActiveB&K PRECISION
DATA ACQUISITION UNIT, 6 CHANNELS, 1 MSPS, 1 KV, 100 KHZ, 295 MM
Description
General part information
DAS60
Multifunction I/O DAQ Device RJ45, USB 2.0 Host (2) Screw Terminal
Technical Specifications
Parameters and characteristics for this part
| Specification | DAS60 |
|---|---|
| Bus Connection | RJ45, USB 2.0 Host |
| Front Connection | Screw Terminal |
| Function | Multifunction I/O |
| Input Resolution | 14 Bits |
| Input Types | Analog, Digital |
| Input Voltage (Max) | 500 V |
| Input Voltage (Min) | -500 V |
| Input Voltage (Value) | 440 VAC |
| Number of Analog Inputs | 6 |
| Number of Digital Inputs | 16 |
| Output Voltage | 5 V |
| Sampling Rate (Per Second) | 1 MHz |
| Type | DAQ Device |
| USB 2.0 Host Count | 2 |
