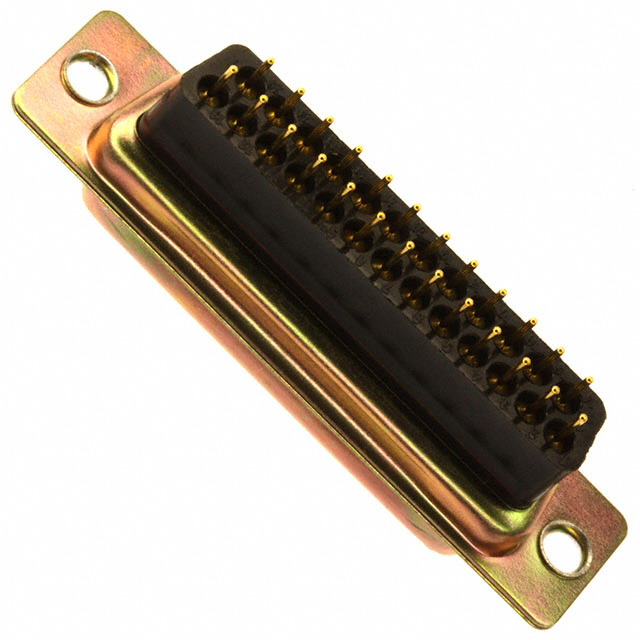

Specification	172-025-281L001

Color	Black
Connector Layout	DB, B
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Finish	Yellow Chromate Plated
Flange Feature	Shell (Unthreaded), Housing
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Through Hole
Number of Positions	25
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-50 °C
Shell Material	Steel
Shell Size	3
Termination	Solder

172-025 Series

Part	Features	Contact Finish Thickness (string set options)	Contact Finish Thickness	Shell Size	Connector Layout	Number of Rows	Connector Type	Finish	Shell Material	Contact Type	Material Flammability Rating	Contact Finish	Flange Feature	Mounting Type	Termination	Number of Positions	Current Rating	Connector Style	Operating Temperature (Min)	Operating Temperature (Max)	Contact Form	Color	Dielectric Material	Contact Material	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)
NorComp Inc. 172-025-112-001	Grounding Indents	Flash	Flash	3	B DB	2	Male Pins Plug	Tin Plated	Steel	Signal	UL94 V-0	Gold	Housing Shell (Unthreaded)	Panel Mount Through Hole	Solder	25	5 A	D-Sub	-50 °C	100 °C	Machined	Black	Polybutylene Terephthalate (PBT)
NorComp Inc. 172-025-181-011		Flash	Flash	3	B DB	2	Male Pins Plug	Yellow Chromate Plated	Steel	Signal	UL94 V-0	Gold	Board Side (4-40)	Panel Mount Through Hole	Solder	25	5 A	D-Sub	-50 °C	100 °C			Polybutylene Terephthalate (PBT)
NorComp Inc. 172-025-202R011		Flash	Flash	3	B DB	2	Female Sockets Receptacle	Tin Plated	Steel	Signal	UL94 V-0	Gold	Cable Side (4-40)	Panel Mount	Solder Cup	25	5 A	D-Sub	-50 °C	100 °C	Machined	Beige	Glass Filled Polybutylene Terephthalate (PBT)	Brass	26 AWG	19.5 AWG
NorComp Inc. 172-025-112R011	Grounding Indents	Flash	Flash	3	B DB	2	Male Pins Plug	Tin Plated	Steel	Signal	UL94 V-0	Gold	Board Side (4-40)	Panel Mount Through Hole	Solder	25	5 A	D-Sub	-50 °C	100 °C	Machined	Beige	Polybutylene Terephthalate (PBT) Polyester	Brass
NorComp Inc. 172-025-241-001		Flash	Flash	3	B DB	2	Female Sockets Receptacle	Yellow Chromate Plated	Steel	Signal	UL94 V-0	Gold	Housing Shell (Unthreaded)	Panel Mount Through Hole	Wire Wrap	25	5 A	D-Sub	-50 °C	100 °C	Machined	Beige	Polybutylene Terephthalate (PBT)
NorComp Inc. 172-025-182-001	Grounding Indents	Flash	Flash	3	B DB	2	Male Pins Plug	Tin Plated	Steel	Signal	UL94 V-0	Gold	Housing Shell (Unthreaded)	Panel Mount Through Hole	Solder	25	5 A	D-Sub	-50 °C	100 °C			Polybutylene Terephthalate (PBT)
NorComp Inc. 172-025-111-001		Flash	Flash	3	B DB	2	Male Pins Plug	Yellow Chromate Plated	Steel	Signal	UL94 V-0	Gold	Housing Shell (Unthreaded)	Panel Mount Through Hole	Solder	25	5 A	D-Sub	-50 °C	100 °C	Machined	Black	Polybutylene Terephthalate (PBT)
NorComp Inc. 172-025-202R001		Flash	Flash	3	B DB	2	Female Sockets Receptacle	Tin Plated	Steel	Signal	UL94 V-0	Gold	Housing Shell (Unthreaded)	Panel Mount	Solder Cup	25	5 A	D-Sub	-50 °C	100 °C	Machined	Beige	Glass Filled Polybutylene Terephthalate (PBT)	Brass	26 AWG	19.5 AWG
NorComp Inc. 172-025-181L011		Flash	Flash	3	B DB	2	Male Pins Plug	Yellow Chromate Plated	Steel	Signal	UL94 V-0	Gold	Board Side (4-40)	Panel Mount Through Hole	Solder	25	5 A	D-Sub	-50 °C	125 °C	Machined		Polybutylene Terephthalate (PBT)
NorComp Inc. 172-025-102R031	Grounding Indents	Flash	Flash	3	B DB	2	Male Pins Plug	Tin Plated	Steel	Signal	UL94 V-0	Gold	Mating Side (4-40)	Panel Mount	Solder Cup	25	5 A	D-Sub	-50 °C	100 °C	Machined	Beige	Glass Filled Polybutylene Terephthalate (PBT)	Brass	26 AWG	19.5 AWG
