1002-1541-009

Active

Radiall USA, Inc.

SMC / STRAIGHT PLUG FEMALE SOLDE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMC / STRAIGHT PLUG FEMALE SOLDE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 24.39

General part information

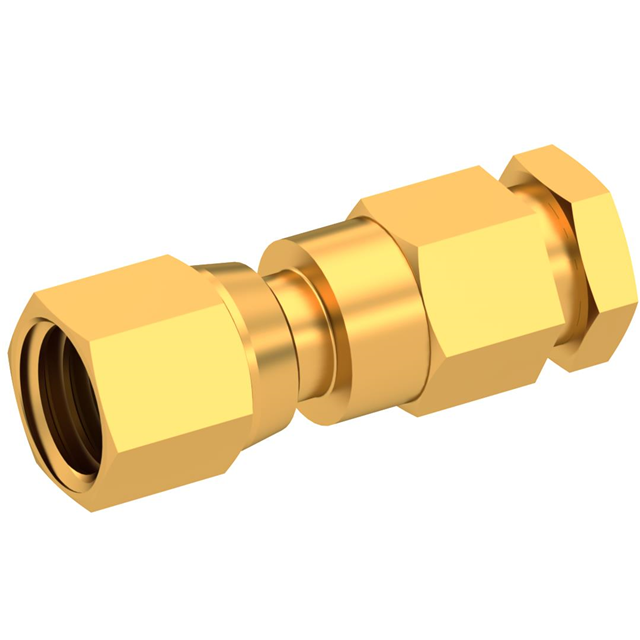

SMC Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Solder

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	1002-1541-009	1002-1541 Series

Body Finish	Gold	Gold
Body Material	Brass	Brass
Cable Group	-	RG-405 (.085" Semi Rigid)
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	SMC	SMC
Connector Type	Plug, Female Socket	Plug, Female Socket
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz	10 GHz
Housing Color	Gold	Gold
Impedance	50 Ohms	50 Ohms
Insertion Loss	0.25 dB	0.25 dB
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Clamp	Clamp

SMC / STRAIGHT PLUG FEMALE SOLDE

Part	Mounting Type	Dielectric Material	Impedance	Connector Type	Housing Color	Contact Termination	Center Contact Plating	Body Finish	Center Contact Material	Connector Style	Shield Termination	Insertion Loss	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Body Material	Frequency - Max [Max]	Cable Group
Radiall USA, Inc. 1002-1541-009	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	50 Ohms	Female Socket, Plug	Gold	Solder	Gold	Gold	Beryllium Copper	SMC	Clamp	0.25 dB	500	-65 ░C	105 ░C	1	Brass	10 GHz
Radiall USA, Inc. 1002-1541-010	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	50 Ohms	Female Socket, Plug	Gold	Solder	Gold	Gold	Beryllium Copper	SMC	Clamp	0.25 dB	500	-65 ░C	105 ░C	1	Brass	10 GHz	RG-405 (.085" Semi Rigid)
