Description
General part information

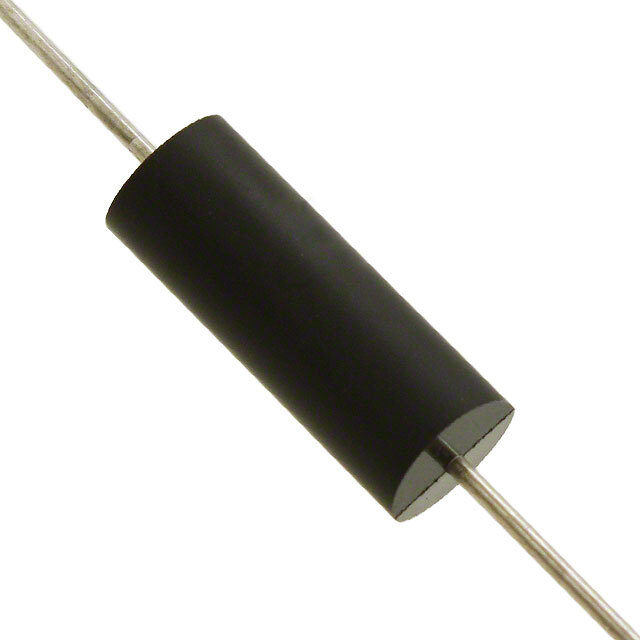

WHER50FET
500 mOhms ±1% 5W Through Hole Resistor Axial Non-Inductive Wirewound
Technical Specifications
Parameters and characteristics for this part
| Specification | WHER50FET |
|---|---|
| Composition | Wirewound |
| Features | Non-Inductive |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 5 W |
| Resistance | 0.5 Ohm |
| Size / Dimension Diameter | 0.295 in |
| Size / Dimension Length | 0.787 in |
| Temperature Coefficient | 90 ppm/°C |
| Tolerance | 1 % |
