1001-7571-002

Active

Radiall USA, Inc.

SMC / STRAIGHT JACK MALE CRIMP T

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMC / STRAIGHT JACK MALE CRIMP T

Technical Specifications

Parameters and characteristics for this part

Specification	1001-7571-002

Body Finish	Nickel
Body Material	Brass
Cable Group	196
Cable Group	RG-178
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMC
Connector Type	Male Pin, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.25 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	250 VDC

SMC / STRAIGHT JACK MALE CRIMP T

Part	Body Finish	Connector Style	Dielectric Material	Mating Cycles	Frequency - Max [Max]	Housing Color	Voltage Rating	Body Material	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Shield Termination	Cable Group	Cable Group	Center Contact Material	Connector Type	Insertion Loss	Impedance	Contact Termination	Mounting Type
Radiall USA, Inc. 1001-7571-002	Nickel	SMC	Polytetrafluoroethylene (PTFE)	500	10 GHz	Silver	250 VDC	Brass	Gold	-65 ░C	165 °C	1	Crimp	196	RG-178	Brass	Jack, Male Pin	0.25 dB	50 Ohms	Crimp	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 22.74

General part information

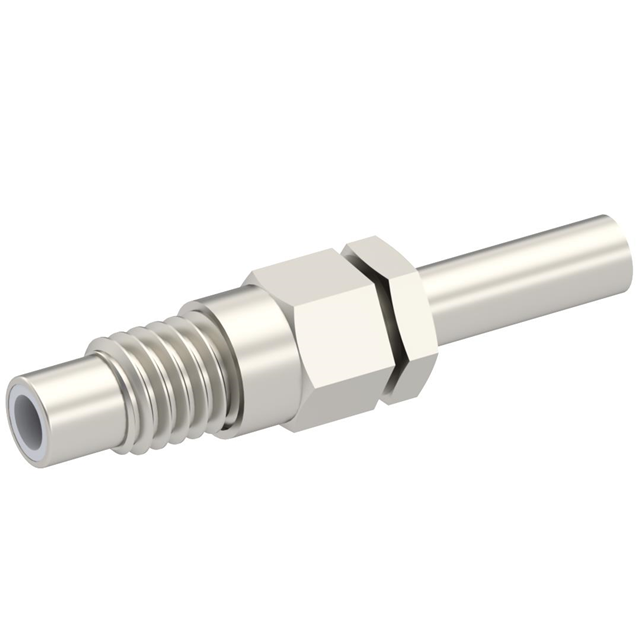

SMC Connector Jack, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
