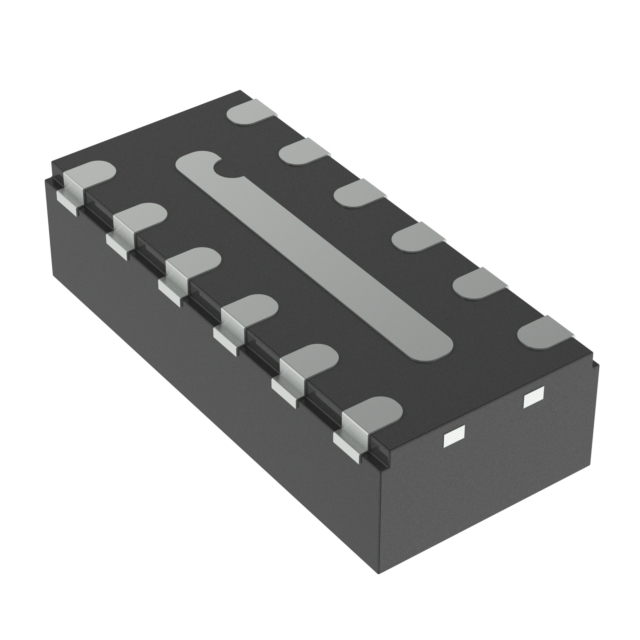

EMIF06-1005MX12Y - 12-QFN

EMIF06-1005MX12Y

Active
STMicroelectronics

AUTOMOTIVE GRADE 6-LINE LOW CAPACITANCE EMI FILTER AND ESD PROTECTION

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetAN5891+14
EMIF06-1005MX12Y - 12-QFN

EMIF06-1005MX12Y

Active
STMicroelectronics

AUTOMOTIVE GRADE 6-LINE LOW CAPACITANCE EMI FILTER AND ESD PROTECTION

Deep-Dive with AI

DocumentsDatasheetAN5891+14

Technical Specifications

Parameters and characteristics commom to parts in this series

SpecificationEMIF06-1005MX12YEMIF06 Series
Applications-Data Lines for Mobile Devices, General Purpose
Attenuation Value--40 - -34 dB
Center / Cutoff Frequency-550 MHz
Current-10 mA
ESD Protection-True
Filter Order-2nd
Height-0.022 - 0.217 in
Height-0.55 - 5.5 mm
Mounting Type-Surface Mount, Wettable Flank
null-
Number of Channels-6
Operating Temperature-85 - 150 °C
Operating Temperature--55 - -30 °C
Package / Case-15-UFBGA, FCBGA, 16-WFBGA, 12-WFDFN Exposed Pad, 15-WFBGA, 12-UFDFN Exposed Pad
Resistance - Channel (Ohms)-1 - 100 Ohms
Size / Dimension-0.061 - 1.92 mm
Size / Dimension-0.051 - 0.076 in
Size / Dimension-0.061 - 0.118 in
Size / Dimension-0.061 - 3 mm
Size / Dimension-1.29 - 1.54 mm
Size / Dimension-1.54 mm
Technology-RC (Pi), RC
Type-Low Pass
Values-1 - 100 pF

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.65
10$ 0.55
100$ 0.39
500$ 0.30
1000$ 0.24
Digi-Reel® 1$ 0.65
10$ 0.55
100$ 0.39
500$ 0.30
1000$ 0.24
Tape & Reel (TR) 3000$ 0.22
6000$ 0.21
9000$ 0.19
30000$ 0.19

EMIF06 Series

EMI FILTER 15-PIN FLIPCHIP SOLDER SMD T/R

PartESD ProtectionResistance - Channel (Ohms)TypeMounting TypeFilter OrderValuesApplicationsTechnologyNumber of Channels [custom]Package / CaseSize / Dimension [y]Size / Dimension [y]Size / Dimension [x]Size / Dimension [x]Height [z]Height [z]Operating Temperature [Max]Operating Temperature [Min]Size / Dimension [y]Size / Dimension [x]Center / Cutoff FrequencyAttenuation ValueCurrent
STMicroelectronics
EMIF06-HSD04F3
1 Ohms
Low Pass
Surface Mount
2nd
1 Ohm, 4.5 pF
Data Lines for Mobile Devices
RC (Pi)
6
15-UFBGA, FCBGA
1.62 mm
0.064 in
0.064 in
1.62 mm
0.022 in
0.55 mm
85 °C
-40 °C
STMicroelectronics
EMIF06-MSD04F3
40 Ohms
Low Pass
Surface Mount
2nd
7.5 pF, 40 Ohms
Data Lines for Mobile Devices
RC (Pi)
6
16-WFBGA, FCBGA
0.061 "
0.061 "
0.026 in
0.65 mm
85 °C
-40 °C
1.54 mm
1.54 mm
550 MHz
STMicroelectronics
EMIF06-MSD04F3
STMicroelectronics
EMIF06-MSD04F3
STMicroelectronics
EMIF06-USD04F3
STMicroelectronics
EMIF06-USD14F3
40 Ohms
Low Pass
Surface Mount
2nd
7.5 pF, 40 Ohms
Data Lines for Mobile Devices
RC (Pi)
6
15-UFBGA, FCBGA
0.061 "
0.061 "
0.217 "
5.5 mm
85 °C
-30 ░C
1.54 mm
1.54 mm
STMicroelectronics
EMIF06-1005MX12Y
100 Ohms
Low Pass
Surface Mount, Wettable Flank
2nd
45 pF, 100 Ohms
Data Lines for Mobile Devices
RC (Pi)
6
12-WFDFN Exposed Pad
1.35 mm
0.053 in
0.118 in
3 mm
0.032 in
0.8 mm
150 °C
-55 °C
-34 dB
STMicroelectronics
EMIF06-1005M12
STMicroelectronics
EMIF06-1005M12
STMicroelectronics
EMIF06-10006F2
100 Ohms
Low Pass
Surface Mount
2nd
60 pF, 100 Ohms
Data Lines for Mobile Devices
RC (Pi)
6
15-WFBGA, FCBGA
0.051 "
0.115 in
2.92 mm
0.028 in
0.7 mm
85 °C
-40 °C
1.29 mm
10 mA

Description

General part information

EMIF06 Series

This is a highly integrated 6-line device designed to suppress EMI/RFI noise in all systems exposed to electromagnetic interference.

This filter includes ESD protection circuitry, which prevents the application from damages when subjected to ESD surges up to 15 kV on the input pins.
