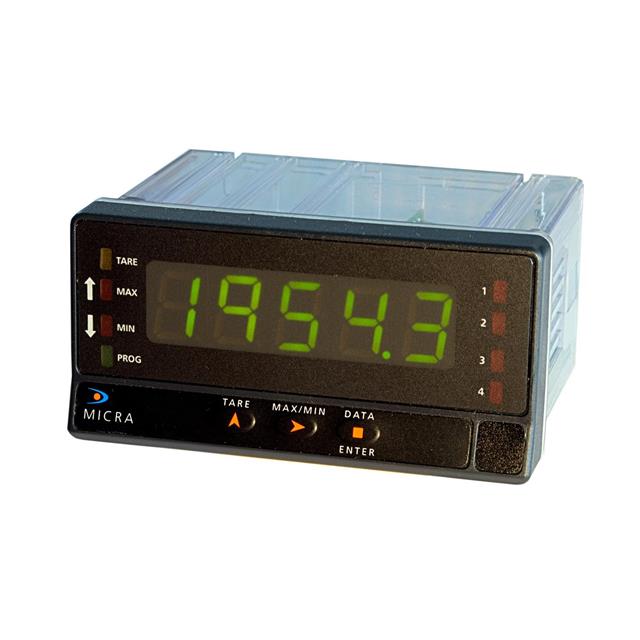

MICRA-D/NMA

Active

DITEL

TACHOMETER/COUNTER/FREQ./TIMER

Search across all available documentation for this part.

Active

DITEL

TACHOMETER/COUNTER/FREQ./TIMER

Technical Specifications

Parameters and characteristics for this part

Specification	MICRA-D/NMA

Display Characters - Height [z]	14 mm
Display Characters - Height [z]	0.551 in
Display Type	LED - Tri-Color Bar Graph
Ingress Protection	IP65 - Dust Tight, Water Resistant
Measuring Range [Max]	20 kHz
Measuring Range [Min]	0 kHz
Measuring Type	Frequency
Number of Characters Per Row	5
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Output Type	Analog
Panel Cutout Dimensions [x]	92 mm
Panel Cutout Dimensions [y]	45 mm
Termination Style	Connector
Type	Frequency Meter
Voltage - Supply [Max]	265 VAC, 300 VDC
Voltage - Supply [Min]	85 VAC, 100 VDC

Part	Termination Style	Output Type	Measuring Range [Max]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Operating Temperature [Min]	Operating Temperature [Max]	Type	Number of Characters Per Row	Display Type	Ingress Protection	Measuring Type	Display Characters - Height [z]	Display Characters - Height [z]	Voltage - Supply [Max]	Voltage - Supply [Min]
DITEL MICRA-D6/NMA	Connector	Analog	20 kHz	92 mm	45 mm	-10 °C	60 °C	Frequency Meter	5	LED - Tri-Color Bar Graph	IP65 - Dust Tight Water Resistant	Frequency	14 mm	0.551 in	53 VAC 70 VDC	10.5 V 21 VAC
DITEL MICRA-D6/2RE	Connector	Relay (2)	20 kHz	92 mm	45 mm	-10 °C	60 °C	Frequency Meter	5	LED - Tri-Color Bar Graph	IP65 - Dust Tight Water Resistant	Frequency	14 mm	0.551 in	53 VAC 70 VDC	10.5 V 21 VAC
DITEL MICRA-D6/2RE/NMA	Connector	Analog Relay (2)	20 kHz	92 mm	45 mm	-10 °C	60 °C	Frequency Meter	5	LED - Tri-Color Bar Graph	IP65 - Dust Tight Water Resistant	Frequency	14 mm	0.551 in	53 VAC 70 VDC	10.5 V 21 VAC
DITEL MICRA-D/NMA	Connector	Analog	20 kHz	92 mm	45 mm	-10 °C	60 °C	Frequency Meter	5	LED - Tri-Color Bar Graph	IP65 - Dust Tight Water Resistant	Frequency	14 mm	0.551 in	265 VAC 300 VDC	85 VAC 100 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Retail Package	1	$ 349.00

General part information

Frequency Meter LED - Tri-Color Bar Graph Display Panel Mount
