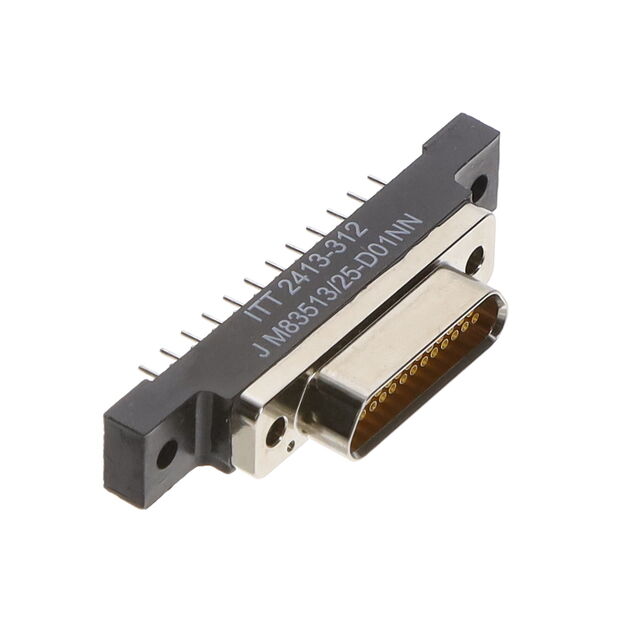

M83513/25-D01NN
25 Position D-Type, Micro-D Receptacle, Female Sockets Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | M83513/25-D01NN |
|---|---|
| Connector Layout Pitch | 0.05 |
| Connector Layout Row to Row | 0.043 |
| Connector Style | Micro-D, D-Type |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Type | Signal |
| Current Rating | 3 A |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Flange Feature | Shell (Unthreaded), Housing |
| Mounting Type | Panel Mount, Through Hole |
| Number of Positions | 25 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Shell Material, Finish | Electroless, Nickel Plated, Aluminum |
| Termination | Solder |
