PAT-02-HC-B-20-D-9

Active

FiberSource, Inc

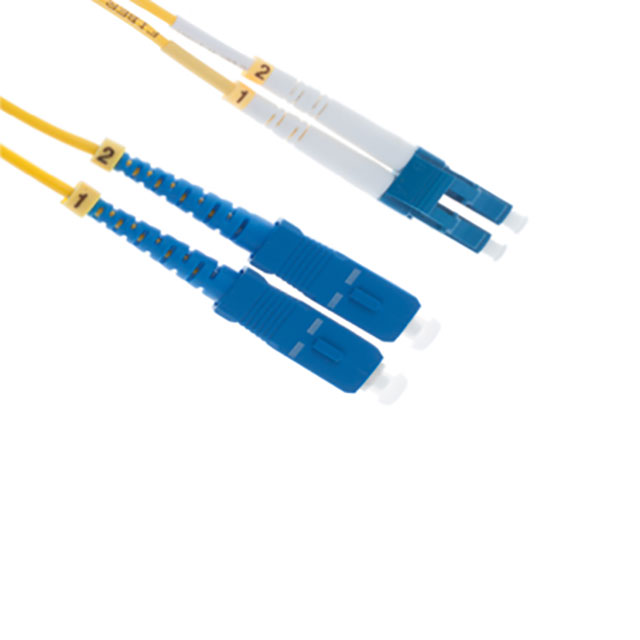

FIBER OPTIC CBL LC-SC DUPLEX 2M

Search across all available documentation for this part.

Active

FiberSource, Inc

FIBER OPTIC CBL LC-SC DUPLEX 2M

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Fiber Optic LC Duplex To SC Duplex 6.6' (2.0m)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	PAT-02-HC-B-20-D-9	PAT-02 Series

1st Connector	LC Duplex	LC/APC, LC Duplex, SC/APC
2nd Connector	SC Duplex	SC/APC, LC Duplex, SC Duplex, SC/UPC, SC/PPC
Cable Diameter [diameter]	2 mm	2 mm
Cable Diameter [diameter]	0.08 in	0.08 in
Color - Cable	Yellow	Yellow
Color - Connectors	Blue	Blue
Fiber Type	-	50/125
Insertion Loss	0.3 dB	0.3 dB
Length - Overall [x]	6.6 ft	6.6 ft
Length - Overall [x]	2 m	2 m
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Return Loss	55 dB	55 - 65 dB
Type	Singlemode, Duplex	Singlemode, Duplex, OM3, Multimode

LCA-SCA SM 2MM YELLOW DUPLEX 2M

Part	Return Loss	Insertion Loss	Color - Connectors	Cable Diameter [diameter]	Cable Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Type	1st Connector	2nd Connector	Operating Temperature [Max]	Operating Temperature [Min]	Color - Cable	Fiber Type
FiberSource, Inc PAT-02-JD-B-20-D-9	65 dB	0.3 dB	Blue	2 mm	0.08 in	6.6 ft	2 m	Duplex, Singlemode	LC/APC	SC/APC	85 °C	-40 °C	Yellow
FiberSource, Inc PAT-02-JH-B-20-D-9	65 dB	0.3 dB	Blue	2 mm	0.08 in	6.6 ft	2 m	Duplex, Singlemode	LC Duplex	LC Duplex	85 °C	-40 °C	Yellow
FiberSource, Inc PAT-02-HC-B-20-D-9	55 dB	0.3 dB	Blue	2 mm	0.08 in	6.6 ft	2 m	Duplex, Singlemode	LC Duplex	SC Duplex	85 °C	-40 °C	Yellow
FiberSource, Inc PAT-02-DC-B-20-D-9	65 dB	0.3 dB	Blue	2 mm	0.08 in	6.6 ft	2 m	Duplex, Singlemode	SC/APC	SC/UPC	85 °C	-40 °C	Yellow
FiberSource, Inc PAT-02-NN-F-20-D-A			Blue	2 mm	0.08 in	6.6 ft	2 m	Duplex, Multimode, OM3	LC Duplex	LC Duplex	85 °C	-40 °C		50/125
FiberSource, Inc PAT-02-HD-B-20-D-9	65 dB	0.3 dB	Blue	2 mm	0.08 in	6.6 ft	2 m	Duplex, Singlemode	LC Duplex	SC Duplex	85 °C	-40 °C	Yellow
FiberSource, Inc PAT-02-HH-B-20-D-9	55 dB	0.3 dB	Blue	2 mm	0.08 in	6.6 ft	2 m	Duplex, Singlemode	LC Duplex	LC Duplex	85 °C	-40 °C	Yellow
FiberSource, Inc PAT-02-DD-B-20-D-9	65 dB	0.3 dB	Blue	2 mm	0.08 in	6.6 ft	2 m	Duplex, Singlemode	SC/APC	SC/APC	85 °C	-40 °C	Yellow
FiberSource, Inc PAT-02-NL-F-20-D-A			Blue	2 mm	0.08 in	6.6 ft	2 m	Duplex, Multimode, OM3		SC/PPC	85 °C	-40 °C		50/125
