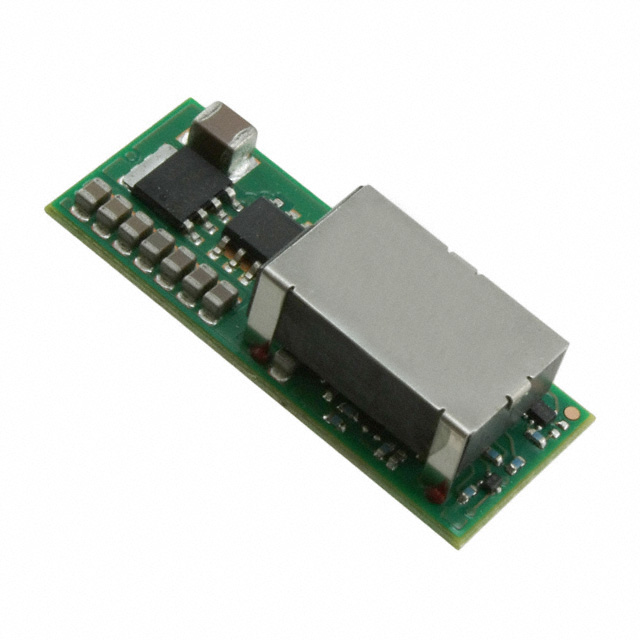

APTS020A0X3-SRZ

Active

OmniOn Power™

DC DC CONVERTER 0.7-5.5V 110W

Search across all available documentation for this part.

Active

OmniOn Power™

DC DC CONVERTER 0.7-5.5V 110W

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER 0.7-5.5V 110W

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Number of Outputs	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Package / Case	Control Features	Features	Voltage - Input (Max) [Max]	Efficiency	Applications	Type	Current - Output (Max) [Max]	Mounting Type	Voltage - Input (Min) [Min]
OmniOn Power™ APTS020A0X3-SRZ	0.53 in	1.3 "	33 mm	13.5 mm	8.5 mm	0.33 in	1	110 W	85 °C	-40 °C	5.5 V	0.7 V	10-SMD Module	Active Low, Enable	OCP, OTP, OVP, Remote On/Off, UVLO	14 V	92 %	ITE (Commercial)	Non-Isolated PoL Module	20 A	Surface Mount	4.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.7 ~ 5.5V 20A 4.5V - 14V Input
