MAX9719BEUE+
ActiveAnalog Devices Inc./Maxim Integrated

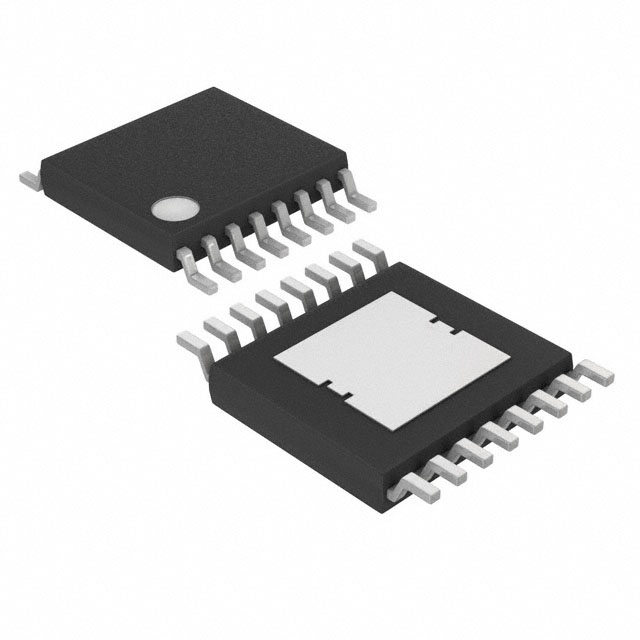

IC AMP CLSS AB STER 1.4W 16TSSOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAX9719BEUE+
ActiveAnalog Devices Inc./Maxim Integrated
IC AMP CLSS AB STER 1.4W 16TSSOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAX9719BEUE+ | MAX9719 Series |
|---|---|---|
| Features | Differential Inputs, Shutdown, Depop, Thermal Protection | Differential Inputs, Shutdown, Depop, Thermal Protection |
| Max Output Power x Channels @ Load | 2, 1.4 W | 1.4 - 2 |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Type | 2-Channel (Stereo) | 2-Channel (Stereo) |
| Package / Case | Exposed Pad, 16-TSSOP | 16-WQFN Exposed Pad, 16-WFBGA, CSPBGA, Exposed Pad, 16-TSSOP |
| Package / Case [custom] | 0.173 " | 0.173 " |
| Package / Case [custom] | 4.4 mm | 4.4 mm |
| Supplier Device Package | 16-TSSOP-EP | 16-TQFN (4x4), 16-UCSP (2x2), 16-TSSOP-EP |
| Type | Class AB | Class AB |
| Voltage - Supply [Max] | 5.5 V | 5.5 V |
| Voltage - Supply [Min] | 2.7 V | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
MAX9719 Series
IC AMP AUDIO PWR 1.4W AB 16TQFN
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Supplier Device Package | Type | Voltage - Supply [Min] | Voltage - Supply [Max] | Output Type | Features | Mounting Type | Max Output Power x Channels @ Load | Package / Case [custom] | Package / Case [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAX9719BETE+T | 85 °C | -40 °C | 16-WQFN Exposed Pad | 16-TQFN (4x4) | Class AB | 2.7 V | 5.5 V | 2-Channel (Stereo) | Depop, Differential Inputs, Shutdown, Thermal Protection | Surface Mount | 1.4 W, 2 | ||
Analog Devices Inc./Maxim Integrated MAX9719BETE+ | 85 °C | -40 °C | 16-WQFN Exposed Pad | 16-TQFN (4x4) | Class AB | 2.7 V | 5.5 V | 2-Channel (Stereo) | Depop, Differential Inputs, Shutdown, Thermal Protection | Surface Mount | 1.4 W, 2 | ||
Analog Devices Inc./Maxim Integrated MAX9719BEBE+T | 85 °C | -40 °C | 16-WFBGA, CSPBGA | 16-UCSP (2x2) | Class AB | 2.7 V | 5.5 V | 2-Channel (Stereo) | Depop, Differential Inputs, Shutdown, Thermal Protection | Surface Mount | 1.4 W, 2 | ||
Analog Devices Inc./Maxim Integrated MAX9719BEUE+T | 85 °C | -40 °C | 16-TSSOP, Exposed Pad | 16-TSSOP-EP | Class AB | 2.7 V | 5.5 V | 2-Channel (Stereo) | Depop, Differential Inputs, Shutdown, Thermal Protection | Surface Mount | 1.4 W, 2 | 0.173 " | 4.4 mm |
Analog Devices Inc./Maxim Integrated MAX9719DEUE+ | 85 °C | -40 °C | 16-TSSOP, Exposed Pad | 16-TSSOP-EP | Class AB | 2.7 V | 5.5 V | 2-Channel (Stereo) | Depop, Differential Inputs, Shutdown, Thermal Protection | Surface Mount | 1.4 W, 2 | 0.173 " | 4.4 mm |
Analog Devices Inc./Maxim Integrated MAX9719DETE+ | 85 °C | -40 °C | 16-WQFN Exposed Pad | 16-TQFN (4x4) | Class AB | 2.7 V | 5.5 V | 2-Channel (Stereo) | Depop, Differential Inputs, Shutdown, Thermal Protection | Surface Mount | 1.4 W, 2 | ||
Analog Devices Inc./Maxim Integrated MAX9719CEUE+T | 85 °C | -40 °C | 16-TSSOP, Exposed Pad | 16-TSSOP-EP | Class AB | 2.7 V | 5.5 V | 2-Channel (Stereo) | Depop, Differential Inputs, Shutdown, Thermal Protection | Surface Mount | 1.4 W, 2 | 0.173 " | 4.4 mm |
Analog Devices Inc./Maxim Integrated MAX9719AETE | 85 °C | -40 °C | 16-WQFN Exposed Pad | 16-TQFN (4x4) | Class AB | 2.7 V | 5.5 V | 2-Channel (Stereo) | Depop, Differential Inputs, Shutdown, Thermal Protection | Surface Mount | 1.4 W, 2 | ||
Analog Devices Inc./Maxim Integrated MAX9719BEUE+ | 85 °C | -40 °C | 16-TSSOP, Exposed Pad | 16-TSSOP-EP | Class AB | 2.7 V | 5.5 V | 2-Channel (Stereo) | Depop, Differential Inputs, Shutdown, Thermal Protection | Surface Mount | 1.4 W, 2 | 0.173 " | 4.4 mm |
Analog Devices Inc./Maxim Integrated MAX9719DEUE+T | 85 °C | -40 °C | 16-TSSOP, Exposed Pad | 16-TSSOP-EP | Class AB | 2.7 V | 5.5 V | 2-Channel (Stereo) | Depop, Differential Inputs, Shutdown, Thermal Protection | Surface Mount | 1.4 W, 2 | 0.173 " | 4.4 mm |
Description
General part information
MAX9719 Series
Amplifier IC 2-Channel (Stereo) Class AB 16-TSSOP-EP
