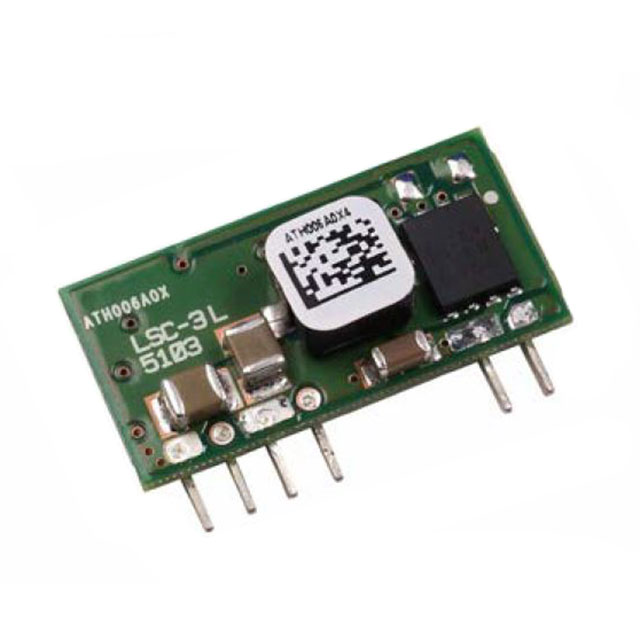

ATH006A0X4Z
ObsoleteOmniOn Power™
DC DC CONVERTER 0.8-3.6V 21W
ATH006A0X4Z
ObsoleteOmniOn Power™
DC DC CONVERTER 0.8-3.6V 21W
Description
General part information
ATH006A0X4Z
Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 3.6V 6A 2.4V - 5.5V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | ATH006A0X4Z |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) | 6 A |
| Efficiency | 96 % |
| Features | OCP, Remote On/Off, OTP, UVLO |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 6-SIP Module |
| Power (Watts) | 21 W |
| Size / Dimension Height | 0.5 in |
| Size / Dimension Length | 1 in |
| Size / Dimension Width | 0.26 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) | 5.5 V |
| Voltage - Input (Min) | 2.4 V |
| Voltage - Output 1 (Max) | 3.6 V |
| Voltage - Output 1 (Min) | 800 mV |
