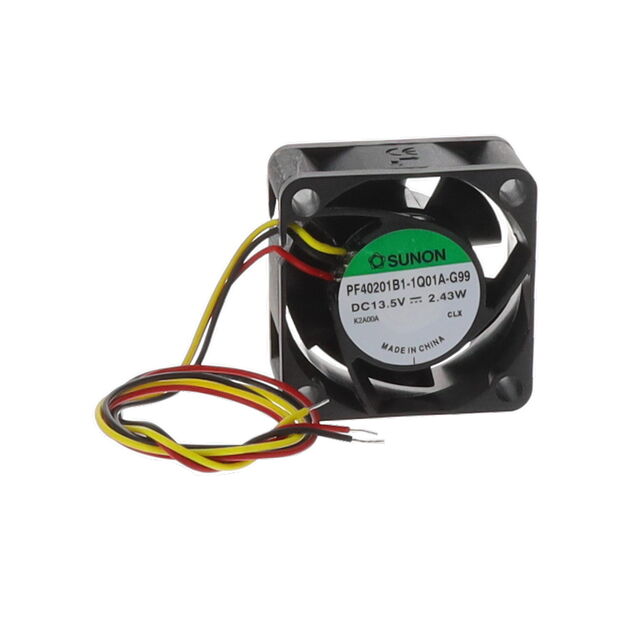

4509HQ/PF40201B1-1Q01A-G99

Obsolete

Sunon Fans

FAN AXIAL 40X20MM 13.5VDC WIRE

Search across all available documentation for this part.

Obsolete

Sunon Fans

FAN AXIAL 40X20MM 13.5VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	4509HQ/PF40201B1-1Q01A-G99

Approval Agency	CE
Bearing Type	Ball
Current Rating (Amps)	0.18 A
Fan Type	Tubeaxial
Features	Auto Restart, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	46.5 dB
Operating Temperature [Max]	105 °C
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	2.43 W
RPM	13000 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Static Pressure	196.8 Pa
Static Pressure	0.79 in H2O
Termination	3 Wire Leads
Voltage - Rated	13.5 VDC
Voltage Range [Max]	16 V
Voltage Range [Min]	6 VDC
Weight	0.061 lb
Weight	27.67 g
Width [y]	20 mm

FAN AXIAL 40X20MM 13.5VDC WIRE

Part	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Voltage - Rated	Current Rating (Amps)	Termination	Power (Watts)	Width [y]	Material - Blade	Bearing Type	Weight	Weight	Static Pressure	Static Pressure	Fan Type	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Noise	Approval Agency	RPM	Voltage Range [Max]	Voltage Range [Min]
Sunon Fans 4509HQ/PF40201B1-1Q01A-G99	70000 Hrs	105 °C	-40 °C	105 ░C	-40 °C	Auto Restart, Speed Sensor (Tach)	13.5 VDC	0.18 A	3 Wire Leads	2.43 W	20 mm	Polybutylene Terephthalate (PBT)	Ball	0.061 lb	27.67 g	196.8 Pa	0.79 in H2O	Tubeaxial	40 mm	Square	40 mm	46.5 dB	CE	13000 RPM	16 V	6 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 13.5VDC Square - 40mm L x 40mm H Ball 14.0 CFM (0.392mł/min) 3 Wire Leads
