Description
General part information
CM-102684BSTK

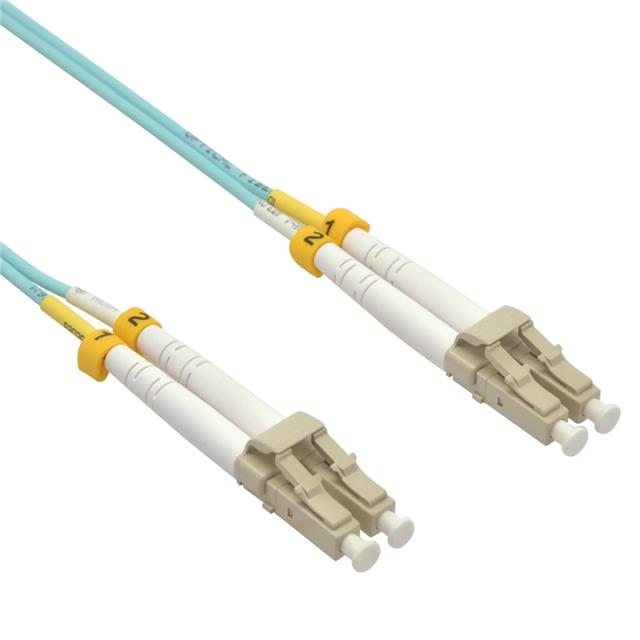

Cable Fiber Optic LC/UPC To LC/UPC 50/125 26.2' (8.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | CM-102684BSTK |
|---|---|
| 1st Connector | LC/UPC |
| 2nd Connector | LC/UPC |
| Cable Diameter | 0.08 " |
| Cable Type | Fiber Patch |
| Color - Cable | Aqua |
| Color - Connectors | Beige |
| Features | Low Smoke |
| Fiber Cladding Diameter | 125 µm |
| Fiber Core Diameter | 50 µm |
| Insertion Loss | 0.3 dB |
| Jacket (Insulation) Material | Low Smoke Zero Halogen (LSZH) |
| Length - Overall | 26.2 ft |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Ratings | LSZH, OFNR |
| Return Loss | 55 dB |
| Type | Multimode, Duplex, OM3 |
