1-1337445-0

Active

TE Connectivity AMP Connectors

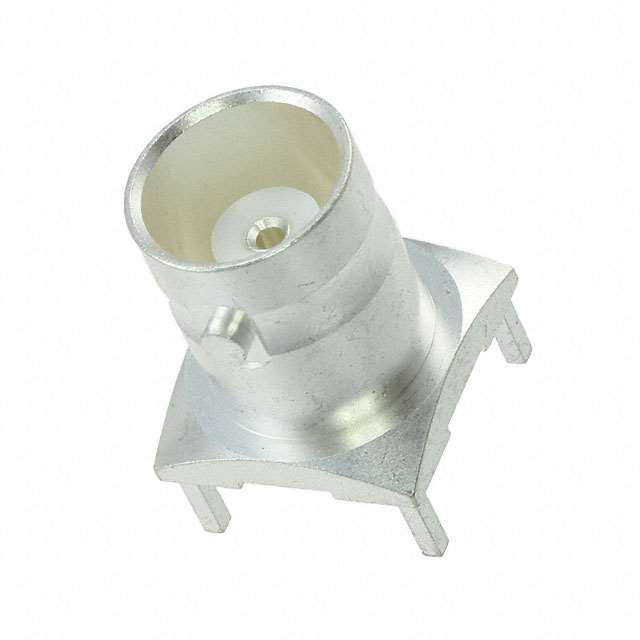

CONN BNC JACK STR 50 OHM PCB

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN BNC JACK STR 50 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	1-1337445-0

Body Finish	Silver
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

CONN BNC JACK STR 50 OHM PCB

Part	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Voltage Rating	Number of Ports	Center Contact Material	Contact Termination	Center Contact Plating	Fastening Type	Mating Cycles	Connector Style	Shield Termination	Connector Type	Body Material	Dielectric Material	Impedance	Housing Color	Mounting Type
TE Connectivity AMP Connectors 1-1337445-0	Silver	-65 ░C	165 °C	4 GHz	500 V	1	Brass	Solder	Silver	Bayonet Lock	500	BNC	Solder	Female Socket, Jack	Brass	Polytetrafluoroethylene (PTFE)	50 Ohms	Silver	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Jack, Female Socket 50 Ohms Through Hole Solder
