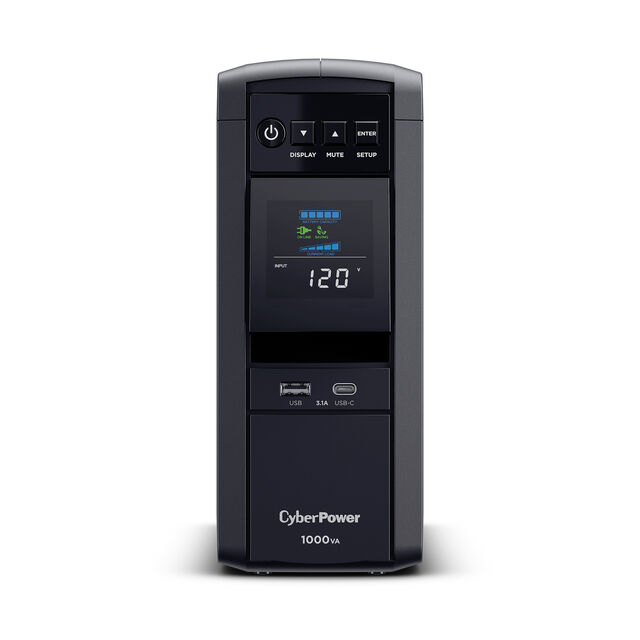

CP1000PFCLCDTAA
ObsoleteCyber Power Systems (USA) Inc.
1000VA/600W, PFC SINE WAVE MINI-
CP1000PFCLCDTAA
ObsoleteCyber Power Systems (USA) Inc.
1000VA/600W, PFC SINE WAVE MINI-
Description
General part information
CP1000PFCLCDTAA
1000VA/600W, PFC SINE WAVE MINI-
Technical Specifications
Parameters and characteristics for this part
| Specification | CP1000PFCLCDTAA |
|---|---|
| AC Outlet Types | Surge Only, UPS |
| AC Outlets (Count) | 10 count |
| AC Outlets (Surge Only) | 5 count |
| AC Outlets (UPS) | 5 count |
| Applications | Home Theater, Desktop |
| Backup Time - Max Load | 1 minutes |
| Cord Length | 5 ft |
| Form | Tower |
| Height | 9.7 in |
| Input Connector | NEMA 5-15P |
| Media Lines Protected | RJ45 |
| Output Connector | NEMA 5-15R |
| Output Connector Quantity (NEMA 5-15R) | 10 |
| Power - Rated (VA) | 1 kVA |
| Power - Rated (W) | 600 W |
| Size / Dimension Length | 259.08 mm |
| Size / Dimension Width | 3.9 in |
| Type | Line Interactive (Input Regulation) |
| Voltage - Input | 120 VAC |
| Voltage - Output | 120 V |
