155250-5302-RB

Active

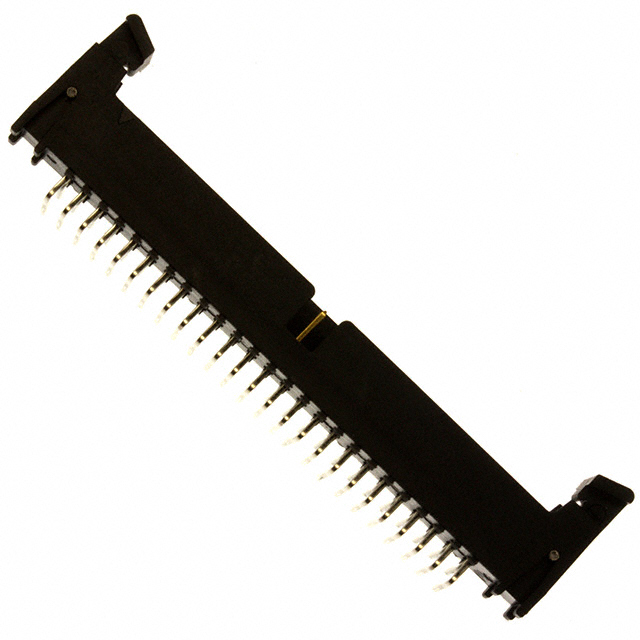

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2 MM, 2 ROWS, 50 CONTACTS, THROUGH HOLE RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Catalog

155250-5302-RB

Active

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2 MM, 2 ROWS, 50 CONTACTS, THROUGH HOLE RIGHT ANGLE

Deep-Dive with AI

DocumentsDatasheet Interconnect Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	155250-5302-RB	155250 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	30 Áin	10 - 30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.25 - 0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Mating	0.15 in	0.15 in
Contact Length - Mating	3.81 mm	3.81 mm
Contact Length - Post	2.84 mm	2.84 - 3.94 mm
Contact Length - Post	0.112 in	0.112 - 0.155 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.25 A	1.25 A
Fastening Type	Latch Lock/Eject Hooks	Latch Lock/Eject Hooks
Features	Keying Slot	Keying Slot, Pick and Place
Insulation Color	Black	Black
Insulation Height	6.28 mm	6.28 - 10.8 mm
Insulation Height	0.247 in	0.247 - 0.425 in
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Surface Mount, Through Hole, Right Angle, Through Hole
Number of Positions	50	50
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder

155250 Series

PIN HEADER, WIRE-TO-BOARD, 2 MM, 2 ROWS, 50 CONTACTS, SURFACE MOUNT STRAIGHT, 1552 SERIES

Part	Contact Material	Termination	Shrouding	Fastening Type	Contact Finish - Mating	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Contact Type	Features	Contact Shape	Contact Length - Mating	Contact Length - Mating	Style	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Contact Finish - Post	Current Rating (Amps)	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Pitch - Mating [x]	Pitch - Mating [x]	Number of Rows	Contact Length - Post	Contact Length - Post
3M 155250-2300-RB	Copper Alloy	Solder	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Gold	50	30 Áin	0.76 Ám	Black	Male Pin	Keying Slot	Square	0.15 in	3.81 mm	Board to Cable/Wire	200 µin	5.08 µm	Surface Mount	Tin	1.25 A	Header	105 ░C	-55 °C	UL94 V-0	All	0.079 in	2 mm	0.425 in	10.8 mm	0.079 in	2 mm	2
3M 155250-5302-RB	Copper Alloy	Solder	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Gold	50	30 Áin	0.76 Ám	Black	Male Pin	Keying Slot	Square	0.15 in	3.81 mm	Board to Cable/Wire	200 µin	5.08 µm	Through Hole, Right Angle	Tin	1.25 A	Header	105 ░C	-55 °C	UL94 V-0	All	0.079 in	2 mm	0.247 in	6.28 mm	0.079 in	2 mm	2	2.84 mm	0.112 in
3M 155250-2300-RB-WG	Copper Alloy	Solder	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Gold	50	30 Áin	0.76 Ám	Black	Male Pin	Keying Slot, Pick and Place	Square	0.15 in	3.81 mm	Board to Cable/Wire	200 µin	5.08 µm	Surface Mount	Tin	1.25 A	Header	105 ░C	-55 °C	UL94 V-0	All	0.079 in	2 mm	0.425 in	10.8 mm	0.079 in	2 mm	2
3M 155250-6203-RB	Copper Alloy	Solder	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Gold	50	30 Áin	0.76 Ám	Black	Male Pin	Keying Slot	Square	0.15 in	3.81 mm	Board to Cable/Wire	200 µin	5.08 µm	Through Hole	Tin	1.25 A	Header	105 ░C	-55 °C	UL94 V-0	All	0.079 in	2 mm	0.425 in	10.8 mm	0.079 in	2 mm	2	3.94 mm	0.155 "
3M 155250-2200-RB	Copper Alloy	Solder	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Gold	50	30 Áin	0.76 Ám	Black	Male Pin	Keying Slot	Square	0.15 in	3.81 mm	Board to Cable/Wire	200 µin	5.08 µm	Surface Mount	Tin	1.25 A	Header	105 ░C	-55 °C	UL94 V-0	All	0.079 in	2 mm	0.425 in	10.8 mm	0.079 in	2 mm	2
3M 155250-6303-RB	Copper Alloy	Solder	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Gold	50	30 Áin	0.76 Ám	Black	Male Pin	Keying Slot	Square	0.15 in	3.81 mm	Board to Cable/Wire	200 µin	5.08 µm	Through Hole	Tin	1.25 A	Header	105 ░C	-55 °C	UL94 V-0	All	0.079 in	2 mm	0.425 in	10.8 mm	0.079 in	2 mm	2	3.94 mm	0.155 "
3M 155250-5202-RA	Copper Alloy	Solder	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Gold	50	10 çin	0.25 çm	Black	Male Pin	Keying Slot	Square	0.15 in	3.81 mm	Board to Cable/Wire	200 µin	5.08 µm	Through Hole, Right Angle	Tin	1.25 A	Header	105 ░C	-55 °C	UL94 V-0	All	0.079 in	2 mm	0.247 in	6.28 mm	0.079 in	2 mm	2	2.84 mm	0.112 in
3M 155250-6302-RA	Copper Alloy	Solder	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Gold	50	10 çin	0.25 çm	Black	Male Pin	Keying Slot	Square	0.15 in	3.81 mm	Board to Cable/Wire	200 µin	5.08 µm	Through Hole	Tin	1.25 A	Header	105 ░C	-55 °C	UL94 V-0	All	0.079 in	2 mm	0.425 in	10.8 mm	0.079 in	2 mm	2	2.84 mm	0.112 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 14.31
		10	$ 12.40
		100	$ 12.00
Newark	Pack of 100	1	$ 8.55

Description

General part information

155250 Series

Connector Header Through Hole, Right Angle 50 position 0.079" (2.00mm)

Documents

Technical documentation and resources

Datasheet

Interconnect Catalog

Datasheet
