BWR-15/670-D12A-C - BWR-15/670-D12A-C

BWR-15/670-D12A-C

Active
Murata Power Solutions Inc.

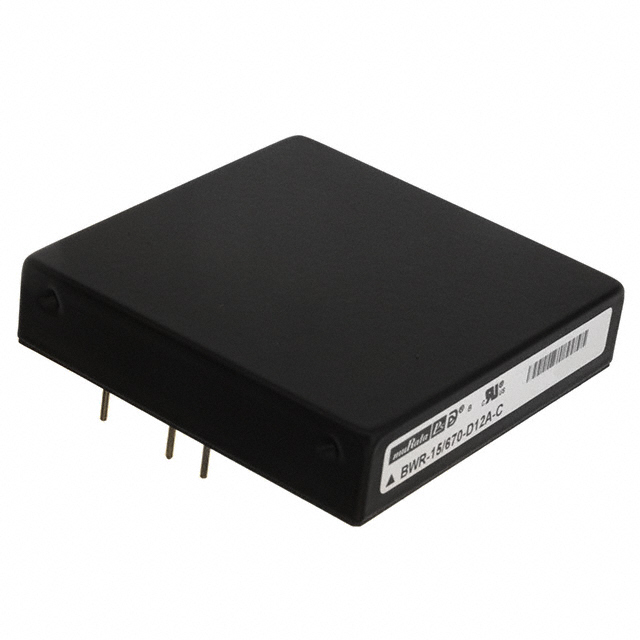

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 4:1, 20 W, 2 OUTPUT, 15 V, 670 MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetProduct Change Notice EN+1
BWR-15/670-D12A-C - BWR-15/670-D12A-C

BWR-15/670-D12A-C

Active
Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 4:1, 20 W, 2 OUTPUT, 15 V, 670 MA

Deep-Dive with AI

DocumentsDatasheetProduct Change Notice EN+1

Technical Specifications

Parameters and characteristics commom to parts in this series

SpecificationBWR-15/670-D12A-CBWR-15 Series
Applications-ITE (Commercial)
Current - Output (Max)-100 - 670 mA
Current - Output (Max)-100 - 670 mA
Current - Output (Max)-500 mA
Efficiency-80 - 84 %
Features-OVP, OCP, OTP, Remote On/Off, OCP, OVP
Mounting Type-Through Hole
null-
Number of Outputs-2
Operating Temperature-100 °C
Operating Temperature--40 °C
Package / Case-6-DIP Module, 5-DIP Module, 8-DIP Module, 7 Leads
Power (Watts)-3 - 20 W
Size / Dimension-25.4 - 50.8 mm
Size / Dimension-50.8 mm
Size / Dimension-0.38 - 0.47 "
Size / Dimension-9.7 - 11.8 mm
Size / Dimension-2 - 25.4 mm
Size / Dimension-2 in
Type-Isolated Module
Voltage - Input (Max)-7.5 - 72 V
Voltage - Input (Min)-4.7 - 18 V
Voltage - Isolation-1.5 - 1000 kV
Voltage - Output 1-15 V
Voltage - Output 2--15 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 101.87
10$ 98.23
25$ 95.81
50$ 92.17
100$ 90.96
NewarkEach 100$ 101.88

BWR-15 Series

ISOLATED SURFACE MOUNT DC/DC CONVERTER, ITE, 2:1, 17 W, 2 OUTPUT, 15 V, 575 MA

PartVoltage - IsolationFeaturesCurrent - Output (Max)Current - Output (Max)Operating Temperature [Max]Operating Temperature [Min]Voltage - Output 1ApplicationsTypeSize / Dimension [y]Size / Dimension [x]Size / Dimension [z]Size / Dimension [z]Size / Dimension [y]Size / Dimension [x]Power (Watts)Number of OutputsVoltage - Output 2EfficiencyVoltage - Input (Max) [Max]Voltage - Input (Min) [Min]Package / CaseMounting TypeCurrent - Output (Max)
Murata Power Solutions Inc.
BWR-15/575-D24A-C
1.5 kV
OCP, OTP, OVP, Remote On/Off
575 mA
575 mA
100 °C
-40 °C
15 V
ITE (Commercial)
Isolated Module
25.4 mm
50.8 mm
0.47 "
11.8 mm
25.4 mm
2 in
17 W
2
-15 V
84 %
36 V
18 V
6-DIP Module
Through Hole
Murata Power Solutions Inc.
BWR-15/330-D12A-C
1000 V
330 mA
330 mA
100 °C
-40 °C
15 V
ITE (Commercial)
Isolated Module
25.4 mm
50.8 mm
0.38 in
9.7 mm
25.4 mm
2 in
10 W
2
-15 V
84 %
18 V
9 V
5-DIP Module
Through Hole
Murata Power Solutions Inc.
BWR-15/575-D24A-C
Murata Power Solutions Inc.
BWR-15/100-D48-C
1.5 kV
OCP, OVP
100 mA
100 mA
100 °C
-40 °C
15 V
ITE (Commercial)
Isolated Module
25.4 mm
50.8 mm
0.47 "
11.8 mm
25.4 mm
2 in
3 W
2
-15 V
80 %
72 V
18 V
6-DIP Module
Through Hole
Murata Power Solutions Inc.
BWR-15/670-D12A-C
Murata Power Solutions Inc.
BWR-15/100-D48-C
Murata Power Solutions Inc.
BWR-15/575-D12A-C
1.5 kV
OCP, OTP, OVP, Remote On/Off
575 mA
575 mA
100 °C
-40 °C
15 V
ITE (Commercial)
Isolated Module
25.4 mm
50.8 mm
0.47 "
11.8 mm
25.4 mm
2 in
17 W
2
-15 V
84 %
18 V
10 VDC
6-DIP Module
Through Hole
Murata Power Solutions Inc.
BWR-15/670-D12A-C
1000 V
670 mA
670 mA
100 °C
-40 °C
15 V
ITE (Commercial)
Isolated Module
50.8 mm
50.8 mm
0.45 "
11.4 mm
2 in
2 in
20 W
2
-15 V
83 %
36 V
9 V
8-DIP Module, 7 Leads
Through Hole
Murata Power Solutions Inc.
BWR-15/500-D5A-C
1000 V
500 mA
100 °C
-40 °C
15 V
ITE (Commercial)
Isolated Module
50.8 mm
50.8 mm
0.45 "
11.4 mm
2 in
2 in
15 W
2
-15 V
7.5 V
4.7 V
8-DIP Module, 7 Leads
Through Hole
500 mA

Description

General part information

BWR-15 Series

The BWR series 5W board-mount miniature DC/DC Converter specifically designed for todays demanding distributed power architectures. The migration to distributed power is accelerating. The critical need for accurate voltages, tight regulation and rapid transient response is propelling the move to power processing at the point-of-use with low-power device physically located right at its loads. It is with full 5W output capability give system architects unprecedented design and layout flexibility. Occupying less than 0.5in³ total volume, this extremely compact, fully regulated and isolated module is available with ±5/±12/±15V outputs. Input voltage ranges are either 18 to 36 or 36 to 72V. Although its overall size is 50 to 75% smaller than many similarly rated power modules. It achieves its small size by exploiting novel feedback approach that does not depend upon traditional optocoupler techniques.
