Specification	B65879Q0150K097

Core Factor (ΣI/A) mm⁻¹	0.441 mm⁻¹

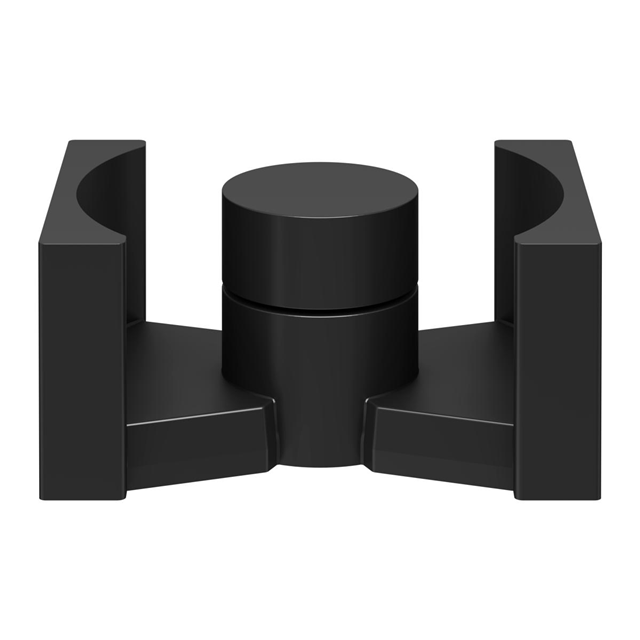

Core Type	PQ
Effective Area (Ae)	153.8 mm²
Effective Length (le)	67.8 mm
Effective Magnetic Volume (Ve)	10440 mm³
Finish	Uncoated
Gap	Distributed Gapped
Height	0.598 in
Inductance Factor (Al)	100 nH
Length	1.102 in
Material	N95
Minimum Core Cross Section (Amin) (mm²)	127.5 mm²
Tolerance	10 %
Width	0.886 in
