CKB.M16.GLLG
ActiveLEMO

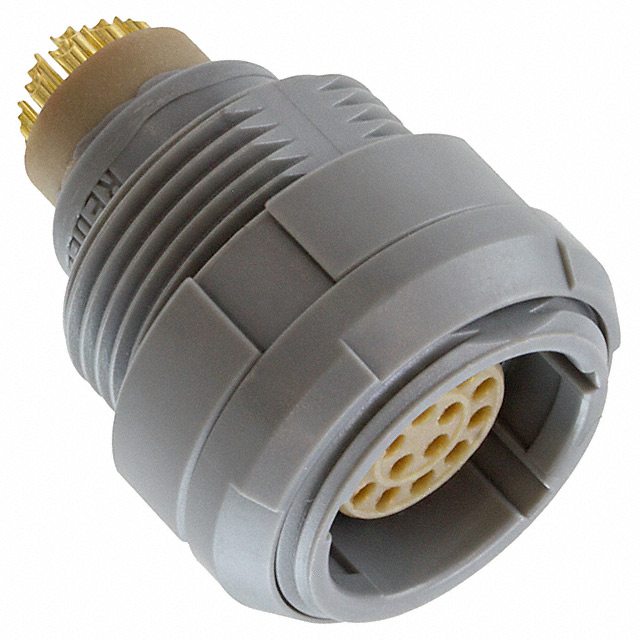

CONN RCPT FMALE 16P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
CKB.M16.GLLG
ActiveLEMO
CONN RCPT FMALE 16P SOLDER CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CKB.M16.GLLG | CKB.M16 Series |
|---|---|---|
| Applications | Medical, Industrial, Automotive, Testing Equipment & Measurement | Medical, Industrial, Automotive, Testing Equipment & Measurement |
| Color | Gray | Gray |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Current Rating (Amps) | 6 A | 6 A |
| Fastening Type | Detent Lock, Push-Pull | Detent Lock, Push-Pull |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Mounting Feature | Front and Rear Side Nut | Front and Rear Side Nut |
| Mounting Type | - | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 16 | 16 |
| Operating Temperature [Max] | 150 °C | 150 °C |
| Operating Temperature [Min] | -50 °C | -50 °C |
| Orientation | B | B |
| Primary Material | Plastic | Plastic |
| Shell Material | Polysulfone (PSU) | Polysulfone (PSU) |
| Shell Size - Insert | M16 | M16 |
| Shielding | Unshielded | Unshielded |
| Termination | - | Solder |
CKB.M16 Series
CONN RCPT FMALE 16P SOLDER CUP
| Part | Number of Positions | Connector Type | Insert Material | Primary Material | Shielding | Mounting Feature | Shell Size - Insert | Shell Material | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Mating | Color | Current Rating (Amps) | Fastening Type | Orientation | Ingress Protection | Mounting Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO CKB.M16.GLLG | 16 | Receptacle, Female Sockets | Polyetheretherketone (PEEK) | Plastic | Unshielded | Front and Rear Side Nut | M16 | Polysulfone (PSU) | Automotive, Industrial, Medical, Testing Equipment & Measurement | 150 °C | -50 °C | Gold | Gray | 6 A | Detent Lock, Push-Pull | B | IP50 | ||
LEMO CKB.M16.GLVG | 16 | Receptacle, Female Sockets | Polyetheretherketone (PEEK) | Plastic | Unshielded | Front and Rear Side Nut | M16 | Polysulfone (PSU) | Automotive, Industrial, Medical, Testing Equipment & Measurement | 150 °C | -50 °C | Gold | Gray | 6 A | Detent Lock, Push-Pull | B | IP50 | Panel Mount, Right Angle, Through Hole | Solder |
LEMO CKB.M16.GLYG | 16 | Receptacle, Female Sockets | Polyetheretherketone (PEEK) | Plastic | Unshielded | Front and Rear Side Nut | M16 | Polysulfone (PSU) | Automotive, Industrial, Medical, Testing Equipment & Measurement | 150 °C | -50 °C | Gold | Gray | 6 A | Detent Lock, Push-Pull | B | IP50 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 57.79 | |
| 10 | $ 53.03 | |||
| 25 | $ 50.99 | |||
| 50 | $ 49.30 | |||
| 100 | $ 46.58 | |||
Description
General part information
CKB.M16 Series
16 Position Circular Connector Receptacle, Female Sockets Solder Cup
Documents
Technical documentation and resources
