UEI30-120-Q12P-C
ActiveMurata Power Solutions Inc.

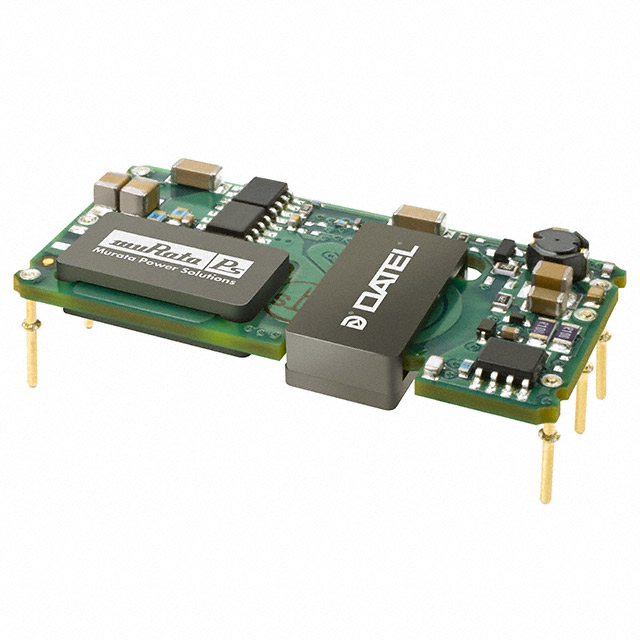

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 4:1, 30 W, 1 OUTPUT, 12 V
Deep-Dive with AI
Search across all available documentation for this part.
UEI30-120-Q12P-C
ActiveMurata Power Solutions Inc.
ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 4:1, 30 W, 1 OUTPUT, 12 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | UEI30-120-Q12P-C | UEI30-120 Series |
|---|---|---|
| - | - | |
| Applications | ITE (Commercial) | ITE (Commercial) |
| Control Features | Active High, Enable | Active High, Enable, Active Low |
| Current - Output (Max) [Max] | 2.5 A | 2.5 A |
| Efficiency | 87.5 % | 87.5 - 89 % |
| Features | OCP, UVLO, OTP, Remote On/Off, SCP, OVP | OCP, UVLO, OTP, Remote On/Off, SCP, OVP |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 6-DIP Module | 6-DIP Module |
| Power (Watts) | 30 W | 30 W |
| Size / Dimension [x] | 1.92 " | 1.92 " |
| Size / Dimension [x] | 48.8 mm | 48.8 mm |
| Size / Dimension [y] | 23.4 mm | 23.4 mm |
| Size / Dimension [y] | 0.92 " | 0.92 " |
| Size / Dimension [z] | 0.35 " | 0.35 " |
| Size / Dimension [z] | 8.9 mm | 8.9 mm |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V | 36 - 75 V |
| Voltage - Input (Min) [Min] | 9 V | 9 - 18 V |
| Voltage - Isolation | 2250 VDC | 2250 VDC |
| Voltage - Output 1 | 12 V | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
UEI30-120 Series
ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 4:1, 30 W, 1 OUTPUT, 12 V
| Part | Control Features | Voltage - Output 1 | Current - Output (Max) [Max] | Features | Voltage - Isolation | Applications | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Min) [Min] | Number of Outputs | Power (Watts) | Mounting Type | Voltage - Input (Max) [Max] | Efficiency | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. UEI30-120-Q12P-C | ||||||||||||||||||||||
Murata Power Solutions Inc. UEI30-120-Q48N-C | ||||||||||||||||||||||
Murata Power Solutions Inc. UEI30-120-Q12P-C | Active High, Enable | 12 V | 2.5 A | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | 2250 VDC | ITE (Commercial) | 6-DIP Module | 85 °C | -40 °C | 9 V | 1 | 30 W | Through Hole | 36 V | 87.5 % | 1.92 " | 48.8 mm | 23.4 mm | 0.35 " | 8.9 mm | 0.92 " | Isolated Module |
Murata Power Solutions Inc. UEI30-120-Q48P-C | Active High, Enable | 12 V | 2.5 A | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | 2250 VDC | ITE (Commercial) | 6-DIP Module | 85 °C | -40 °C | 18 V | 1 | 30 W | Through Hole | 75 V | 89 % | 1.92 " | 48.8 mm | 23.4 mm | 0.35 " | 8.9 mm | 0.92 " | Isolated Module |
Murata Power Solutions Inc. UEI30-120-Q48N-C | Active Low, Enable | 12 V | 2.5 A | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | 2250 VDC | ITE (Commercial) | 6-DIP Module | 85 °C | -40 °C | 18 V | 1 | 30 W | Through Hole | 75 V | 89 % | 1.92 " | 48.8 mm | 23.4 mm | 0.35 " | 8.9 mm | 0.92 " | Isolated Module |
Description
General part information
UEI30-120 Series
Isolated Module DC DC Converter 1 Output 12V 2.5A 9V - 36V Input
