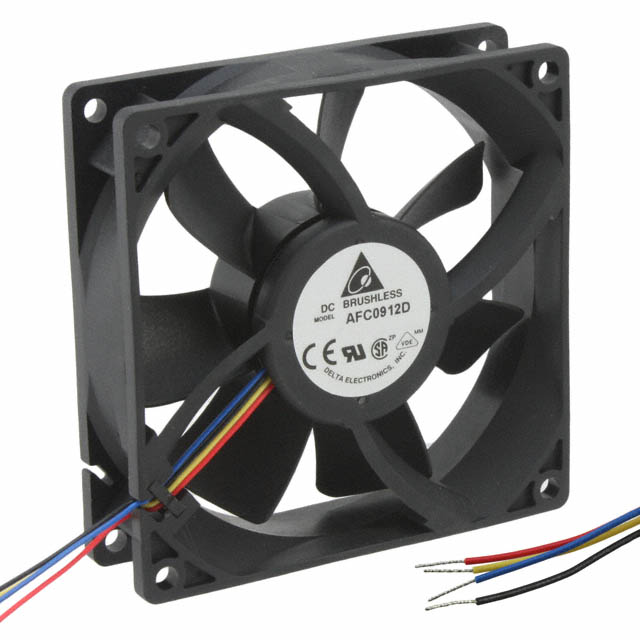

AFC0912D-AF00 - AFC0912D-AF00

AFC0912D-AF00

Active
Delta Electronics

DC FAN AXIAL BALL BEARING 12V 8V TO 13.2V 102.59CFM 53DB 92 X 92 X 25.4MM PWM/TACHOMETER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetFans, Electric - Component UL Cert+2
AFC0912D-AF00 - AFC0912D-AF00

AFC0912D-AF00

Active
Delta Electronics

DC FAN AXIAL BALL BEARING 12V 8V TO 13.2V 102.59CFM 53DB 92 X 92 X 25.4MM PWM/TACHOMETER

Deep-Dive with AI

DocumentsDatasheetFans, Electric - Component UL Cert+2

Technical Specifications

Parameters and characteristics for this part

SpecificationAFC0912D-AF00
Air Flow102.6 CFM
Air Flow2.87 m³/min
Approval AgencyUL, CE, VDE, CSA
Bearing TypeBall
Current Rating (Amps)750 mA
Fan TypeTubeaxial
FeaturesLocked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.70000 Hrs
Material - BladePlastic
Material - FramePlastic
Noise53 dB
Operating Temperature [Max]60 °C
Operating Temperature [Max]60 °C
Operating Temperature [Min]-10 °C
Operating Temperature [Min]-10 °C
Power (Watts)9 W
RPM4800 RPM
Static Pressure131 Pa
Static Pressure0.526 in H2O
Termination4 Wire Leads
Voltage - Rated12 VDC
Voltage Range [Max]13.2 VDC
Voltage Range [Min]8 VDC
Weight0.265 lb
Weight120.2 g
Width [y]25.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBox 1$ 21.89
10$ 20.89
25$ 18.90
72$ 17.41
144$ 15.62
288$ 14.43
504$ 13.43

Description

General part information

AFC0912D-AF00

Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Ball 102.6 CFM (2.87m³/min) 4 Wire Leads
