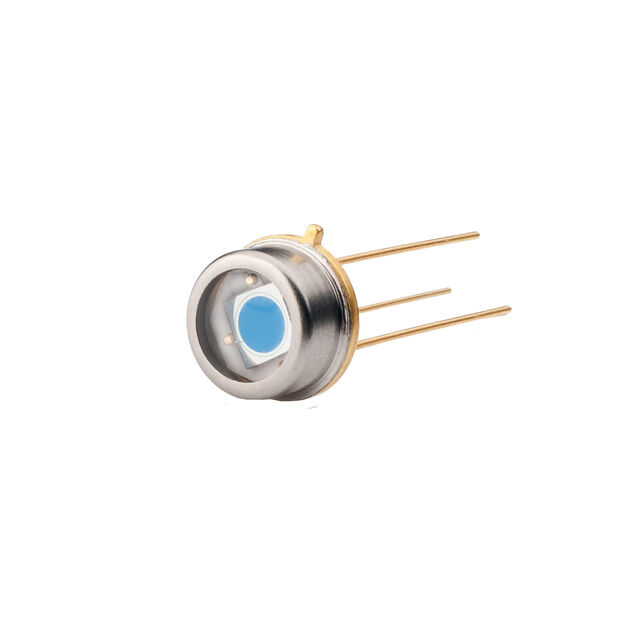

100-11-31-221

Active

Advanced Photonix

SENSOR PHOTODIODE 660NM TO5

Search across all available documentation for this part.

Active

Advanced Photonix

SENSOR PHOTODIODE 660NM TO5

Technical Specifications

Parameters and characteristics for this part

SENSOR PHOTODIODE 660NM TO5

Part	Viewing Angle [custom]	Diode Type	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Spectral Range [Min]	Spectral Range [Max]	Active Area	Color - Enhanced	Response Time	Responsivity @ nm	Operating Temperature [Max]	Operating Temperature [Min]	Current - Dark (Typ)	Wavelength
Advanced Photonix 100-11-31-221	90 °	PIN	Through Hole	75 V	350 nm	1100 nm	5.067 mm²	Red	6 ns	0.55 A/W	125 °C	-40 °C	12 nA	660 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 43.66

General part information

Photodiode 660nm 6ns 90°

Technical documentation and resources
