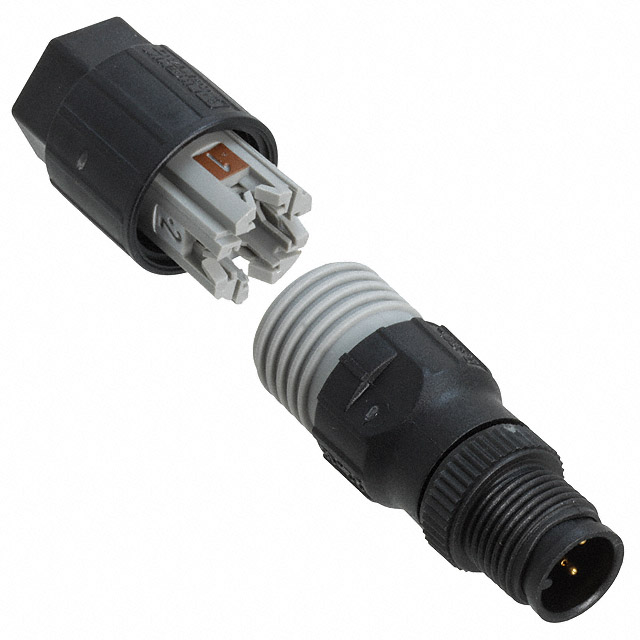

Specification	1641769

Backshell Material, Plating	Polyamide (PA6), Nylon 6
Cable Opening (Max)	0.315 in
Cable Opening (Min)	0.157 in
Color	Black
Connector Type	Male Pins, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Tin
Current Rating	4 A
Fastening Type	Threaded
Features	Backshell
Ingress Protection Description	Dust Tight, Water Resistant, Waterproof
Ingress Protection IP Rating	IP67, IP65
Insert Material	TPU, Thermoplastic Polyurethane
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-25 °C
Orientation	A
Primary Material	Plastic
Shell Material	Plastic
Shell Size - Insert	M12-4
Termination	IDC
Voltage Rating	250 V
