T354A105M020AS

T351C475K025AT

Active
KEMET

TANTALUM CAPACITOR, POLAR, 4.7 ΜF, 25 V, ± 10%, PC PIN, 2.54 MM

Find alt
T354A105M020AS

T351C475K025AT

Active
KEMET

TANTALUM CAPACITOR, POLAR, 4.7 ΜF, 25 V, ± 10%, PC PIN, 2.54 MM

Find alt

Description

General part information

T351C475K025AT

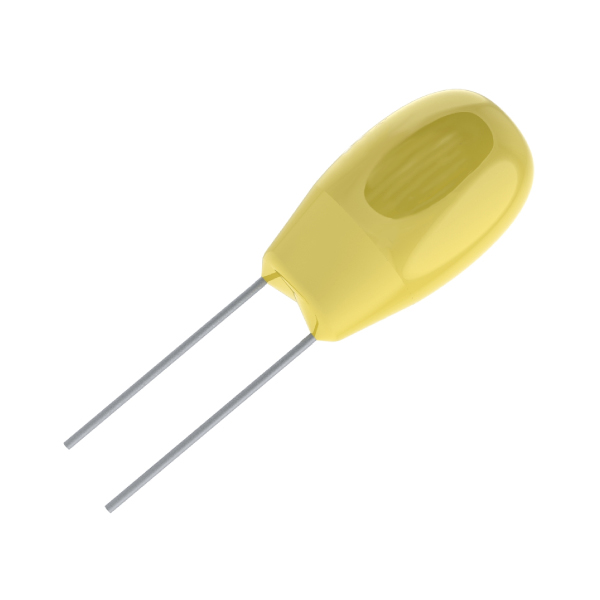

4.7 µF Conformal Coated Tantalum Capacitors 25 V Radial, Disc 4Ohm @ 100kHz

Technical Specifications

Parameters and characteristics for this part

SpecificationT351C475K025AT
Capacitance4.7 µF
ESR (Equivalent Series Resistance)4 Ohm
FeaturesGeneral Purpose
Height - Seated (Max)0.421 in
Lead Spacing0.1 in
Manufacturer Size CodeT351C
Mounting TypeThrough Hole
Operating Temperature (Max)125 °C
Operating Temperature (Min)-55 °C
Package / CaseDisc, Radial
Size / Dimension Diameter0.197 in
Tolerance10 %
TypeConformal Coated
Voltage - Rated25 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part
