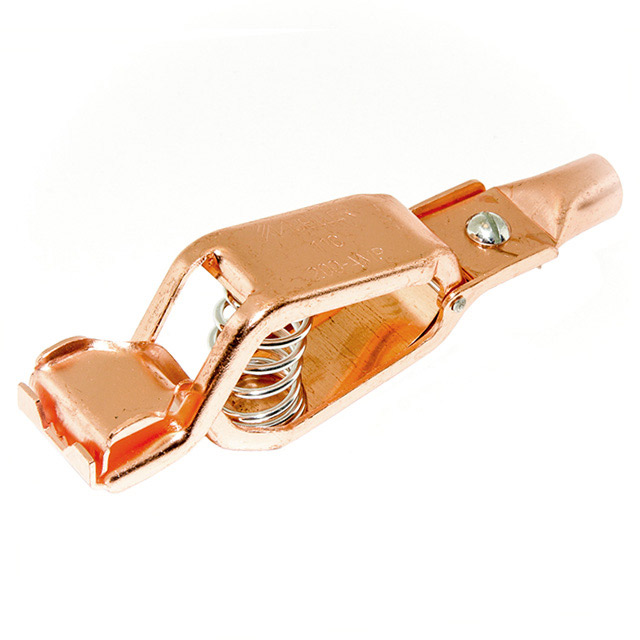

BU-11CPN
ActiveMUELLER ELECTRIC
HD CLIP COPPER NON-INSUL 200A
Deep-Dive with AI
Search across all available documentation for this part.
BU-11CPN
ActiveMUELLER ELECTRIC
HD CLIP COPPER NON-INSUL 200A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BU-11CPN | BU-11 Series |
|---|---|---|
| Color | Natural | Natural |
| Current Rating (Amps) | 200 A | 100 - 200 A |
| Insulation | Non-Insulated | Non-Insulated |
| Jaw Opening | 1.625 in | 1.625 - 1.7 in |
| Jaw Opening | 41.28 mm | 41.28 - 43.18 mm |
| Jaw Opening | - | |
| Length | 152.4 mm | 127 - 152.4 mm |
| Length | 6 in | 5 - 6 in |
| Material | Copper | Stainless Steel, Copper |
| Plating | - | Zinc |
| Quantity | 1 Box | 1 Box |
| Ratings | AA59466-011 | AA59466-011 |
| Termination | Lug | Lug |
| Type | Heavy Duty | Heavy Duty |
BU-11 Series
GROUNDING CLIP, 100A, 41MM ROHS COMPLIANT: YES
| Part | Current Rating (Amps) | Plating | Termination | Jaw Opening | Jaw Opening | Jaw Opening | Insulation | Quantity | Type | Length | Length | Color | Material | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MUELLER ELECTRIC BU-11APS | 100 A | Zinc | Lug | 1.625 in | 41.28 mm | Non-Insulated | 1 Box | Heavy Duty | 152.4 mm | 6 in | Natural | |||
MUELLER ELECTRIC BU-11XPN | 100 A | Lug | 1.7 in | 43.18 mm | Non-Insulated | 1 Box | Heavy Duty | 127 mm | 5 in | Stainless Steel | ||||
MUELLER ELECTRIC BU-11APN | 100 A | Zinc | Lug | 1.625 in | 41.28 mm | Non-Insulated | 1 Box | Heavy Duty | 152.4 mm | 6 in | Natural | |||
MUELLER ELECTRIC BU-11CPN | 200 A | Lug | 1.625 in | 41.28 mm | Non-Insulated | 1 Box | Heavy Duty | 152.4 mm | 6 in | Natural | Copper | AA59466-011 | ||
MUELLER ELECTRIC BU-11CPS | 200 A | Lug | 1.625 in | 41.28 mm | Non-Insulated | 1 Box | Heavy Duty | 152.4 mm | 6 in | Natural | Copper |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
BU-11 Series
The BU-11CPN is a 200A heavy duty grounding Clip with solid copper construction, steel spring. Can be used with up to 0AWG wire or welding cable. Uses BU-13 Series PVC Insulators.
