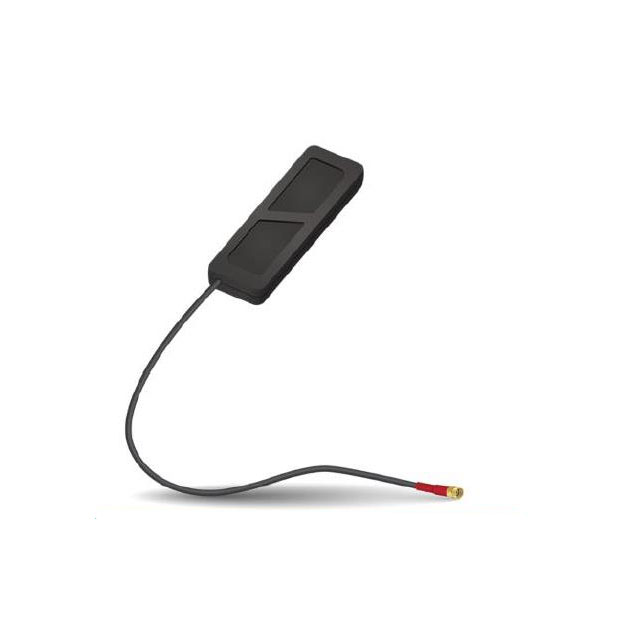

X1005246-4GA1SA10A1
ActiveKyocera AVX
LTE ANTENNA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
X1005246-4GA1SA10A1
ActiveKyocera AVX
LTE ANTENNA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | X1005246-4GA1SA10A1 |
|---|---|
| Antenna Type | Module |
| Applications | LTE |
| Features | Cable - 1m |
| Frequency (Center/Band) | 2.495 GHz, 829 MHz, 1.94 GHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 2.69 GHz, 960 MHz, 2.17 GHz |
| Frequency Range [Min] | 1.71 GHz, 2.3 GHz, 698 MHz |
| Height (Max) [Max] | 0.264 in |
| Height (Max) [Max] | 6.7 mm |
| Ingress Protection | IPX7 |
| Mounting Type | Adhesive |
| Number of Bands | 3 |
| RF Family/Standard | Cellular |
| VSWR | 1.5, 2, 1.8 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 19.87 | |
| 10 | $ 14.42 | |||
| 25 | $ 13.02 | |||
| 200 | $ 10.87 | |||
| 400 | $ 10.38 | |||
| 600 | $ 10.13 | |||
Description
General part information
X1005246 Series
RF ANTENNA LTE Module SMA Male Adhesive
