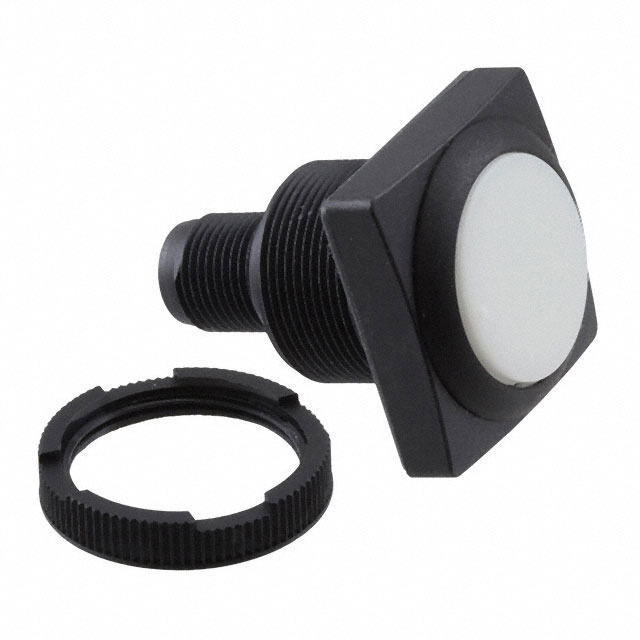

1.10.011.301/0201

Obsolete

RAFI USA

SWITCH PUSH SPST-NO 100MA 35V

Search across all available documentation for this part.

Obsolete

RAFI USA

SWITCH PUSH SPST-NO 100MA 35V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1.10.011.301/0201	1.10.011 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Flush, Button, Round	Flush, Button, Round
Circuit	SPST-NO	SPST-NO
Color - Actuator/Cap	White	Yellow, White
Current Rating (Amps)	100 mA	100 mA
Electrical Life	500000 Cycles	500000 Cycles
Illumination Type, Color	White, LED	LED, Yellow, White
Illumination Voltage (Nominal)	24 V	24 V
Ingress Protection	IP69K - Dust Tight, High Temp Water Jets, Waterproof	IP69K - Dust Tight, High Temp Water Jets, Waterproof
Mechanical Life	500000 Cycles	500000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm	22.3 mm
Switch Function	Off-Mom	Off-Mom
Termination Style	Connector	Connector
Type	Illuminated, Standard	Illuminated, Standard
Voltage Rating - DC	35 V	35 V

SWITCH PUSH SPST-NO 100MA 35V

Part	Type	Electrical Life	Color - Actuator/Cap	Termination Style	Mounting Type	Ingress Protection	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Illumination Voltage (Nominal)	Current Rating (Amps)	Switch Function	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Mechanical Life	Illumination Type, Color	Actuator Marking
RAFI USA 1.10.011.001/0441	Illuminated, Standard	500000 Cycles	Yellow	Connector	Panel Mount, Front	IP69K - Dust Tight, High Temp Water Jets, Waterproof	Button, Flush, Round	70 °C	-25 °C	SPST-NO	24 V	100 mA	Off-Mom	35 V	22.3 mm	500000 Cycles	LED, Yellow	No Marking
RAFI USA 1.10.011.201/0201	Illuminated, Standard	500000 Cycles	White	Connector	Panel Mount, Front	IP69K - Dust Tight, High Temp Water Jets, Waterproof	Button, Flush, Round	70 °C	-25 °C	SPST-NO	24 V	100 mA	Off-Mom	35 V	22.3 mm	500000 Cycles	LED, White	No Marking
RAFI USA 1.10.011.301/0201	Illuminated, Standard	500000 Cycles	White	Connector	Panel Mount, Front	IP69K - Dust Tight, High Temp Water Jets, Waterproof	Button, Flush, Round	70 °C	-25 °C	SPST-NO	24 V	100 mA	Off-Mom	35 V	22.3 mm	500000 Cycles	LED, White	No Marking

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Front
