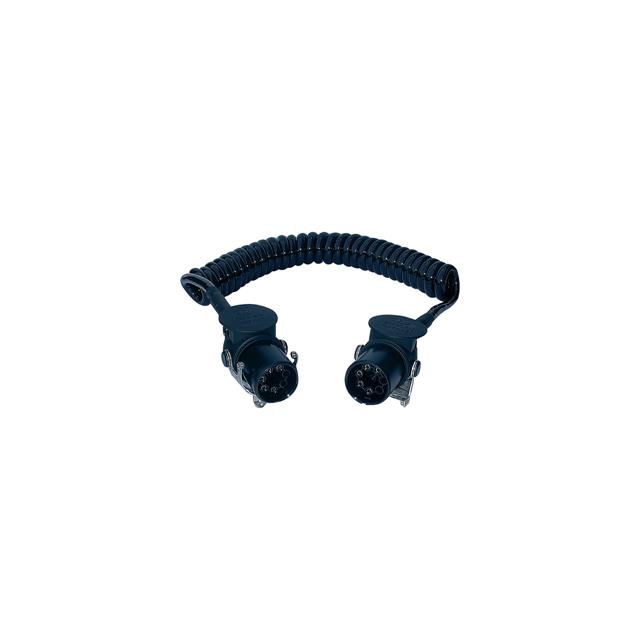

CIRC CBL 7POS PLUG TO PLUG

Deep-Dive with AI

Search across all available documentation for this part.

00558785

Active

Menbers

CIRC CBL 7POS PLUG TO PLUG

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	10	$ 109.18

Description

General part information

- Series

Circular Cable Assembly Unshielded

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	00558785	- Series

	-	-
1st Connector Gender	Female Sockets	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Connector Number of Positions	7	5 - 15
1st Connector Number of Positions Loaded	All	All
1st Connector Type	Plug	Plug
2nd Connector Gender	Female Sockets	Female Sockets, Female Sockets (2)
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Connector Number of Positions	-	5 - 15
2nd Connector Number of Positions Loaded	All	All
2nd Connector Type	Plug	Plug
2nd Connector Type	-	2
Accessory Type	-	Disconnect Switch, Grommet
Applications	-	Industrial, Automotive
Assembly Configuration	Standard	Standard
Backshell Material, Plating	-	Plastic, Aluminum
Cable Material	Polyurethane (PUR)	Polyurethane (PUR)
Cable Opening	-	15.5 mm
Cable Opening	-	0.61 in
Cable Type	Round Coiled	Round Coiled
Color	Black	Black, Silver, Green
Connector Type	-	Female Sockets, Plug, Receptacle, Male Pins
Contact Finish - Mating	-	Nickel
Contact Material	-	Brass
Fastening Type	-	Latch Lock, Push-Pull, Bayonet Lock
Features	-	Backshell, Cap (Cover), Strain Relief
For Use With/Related Products	-	Batteries, Vehicle Connectors
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant, IP54 - Dust Protected, Water Resistant
Insert Material	-	Plastic
Length	-	4.5 m
Length	-	14.76 '
Material	-	Rubber
Mounting Feature	-	Flange
Mounting Type	-	Free Hanging (In-Line), Panel Mount, Right Angle
Number of Positions	-	7 - 15
Orientation	-	Keyed, N
Primary Material	-	Plastic, Metal
Shell Material	-	Plastic, Aluminum
Shielding	Unshielded	Unshielded
Termination	-	Screw, Solder Tabs, Crimp
Usage	Industrial Environments	Industrial Environments
Voltage Rating	-	12 - 24 VDC

- Series

CIRC CBL 7POS PLUG TO PLUG

Part	Ingress Protection	2nd Connector Type	Color	2nd Connector Gender	1st Connector Number of Positions	2nd Connector Mounting Type	Assembly Configuration	Shielding	1st Connector Type	1st Connector Gender	Usage	Cable Type	Cable Material	1st Connector Number of Positions Loaded	2nd Connector Number of Positions Loaded	1st Connector Mounting Type	2nd Connector Number of Positions	Applications	Voltage Rating	Features	Primary Material	Mounting Type	Connector Type	Termination	Shell Material	Backshell Material, Plating	Orientation	Fastening Type	Insert Material	Mounting Feature	Contact Material	Contact Finish - Mating	Number of Positions	For Use With/Related Products	Accessory Type
Menbers 00558785	IP65 - Dust Tight, Water Resistant	Plug	Black	Female Sockets	7	Free Hanging (In-Line)	Standard	Unshielded	Plug	Female Sockets	Industrial Environments	Round Coiled	Polyurethane (PUR)	All	All	Free Hanging (In-Line)
Menbers 00556770	IP65 - Dust Tight, Water Resistant	Plug	Black	Female Sockets	5	Free Hanging (In-Line)	Standard	Unshielded	Plug	Female Sockets	Industrial Environments	Round Coiled	Polyurethane (PUR)	All	All	Free Hanging (In-Line)	5
Menbers 00594770			Black					Unshielded										Automotive, Industrial	24 VDC	Backshell	Plastic	Free Hanging (In-Line)	Female Sockets, Plug	Screw	Plastic	Plastic	Keyed	Latch Lock	Plastic
Menbers 00585400	IP54 - Dust Protected, Water Resistant		Black					Unshielded										Automotive, Industrial	24 VDC	Backshell, Cap (Cover)	Plastic	Free Hanging (In-Line), Panel Mount	Male Pins, Receptacle	Solder Tabs	Plastic	Plastic	N	Push-Pull	Plastic	Flange	Brass	Nickel	7
Menbers 00594870			Black															Automotive, Industrial	24 VDC	Backshell	Plastic	Free Hanging (In-Line)	Female Sockets, Plug	Screw	Plastic	Plastic	Keyed	Latch Lock	Plastic		Brass		7
Menbers 00586870			Black					Unshielded										Automotive, Industrial	24 VDC	Backshell, Cap (Cover)	Plastic	Free Hanging (In-Line), Panel Mount, Right Angle	Male Pins, Receptacle	Crimp	Plastic	Plastic	Keyed	Bayonet Lock	Plastic	Flange
