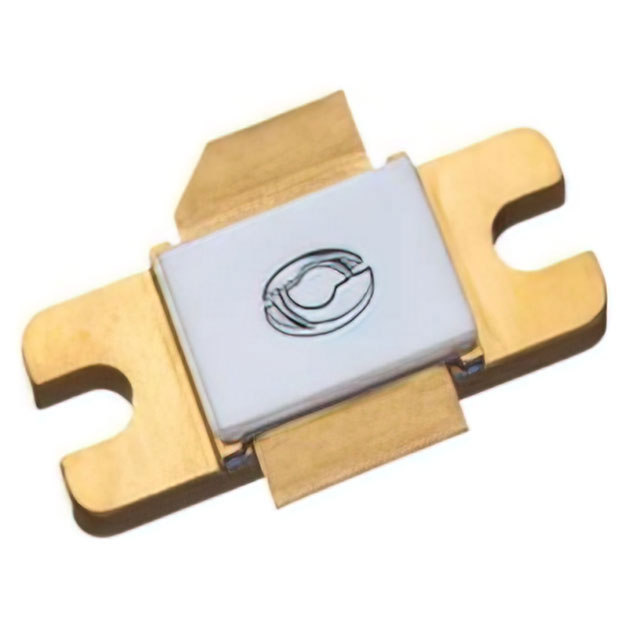

1214GN-600VHE
ActiveMicrochip Technology
1214GN-600VHE-POWER-TRANSISTOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1214GN-600VHE
ActiveMicrochip Technology
1214GN-600VHE-POWER-TRANSISTOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1214GN-600VHE |
|---|---|
| Current - Test | 100 mA |
| Frequency [Max] | 1.4 GHz |
| Frequency [Min] | 1.2 GHz |
| Gain | 17.5 dBi |
| Mounting Type | Surface Mount |
| Package / Case | 55-KR |
| Power - Output | 600 W |
| Supplier Device Package | 55-KR |
| Technology | HEMT |
| Voltage - Rated | 150 V |
| Voltage - Test | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Microchip Direct | N/A | 1 | $ 1334.60 | |
| 5 | $ 1148.52 | |||
| 10 | $ 1007.37 | |||
| 25 | $ 898.29 | |||
| 50 | $ 821.29 | |||
| 100 | $ 757.12 | |||
| 250 | $ 712.22 | |||
| 500 | $ 686.55 | |||
| 1000 | $ 673.71 | |||
| 5000 | $ 667.30 | |||
1214GN-600VHE-Power-Transistor Series
1214GN-600VHE-Power-Transistor
| Part | Technology | Power - Output | Frequency [Max] | Frequency [Min] | Mounting Type | Gain | Current - Test | Voltage - Rated | Package / Case | Voltage - Test | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology 1214GN-600VHE | HEMT | 600 W | 1.4 GHz | 1.2 GHz | Surface Mount | 17.5 dBi | 100 mA | 150 V | 55-KR | 50 V | 55-KR |
