A1RXB-3036G
ActiveTE Connectivity AMP Connectors
IDC CABLE - APR30B/AE30G/X
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A1RXB-3036G
ActiveTE Connectivity AMP Connectors
IDC CABLE - APR30B/AE30G/X
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A1RXB-3036G | A1RXB Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | - | Ribbon, Multiple |
| Connector Type | Plug to Cable | Plug to Cable |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Features | Polarizing Key, Strain Relief | Polarizing Key, Strain Relief |
| Length [x] | 3 ft | 3 ft |
| Length [x] | 914.4 mm | 914.4 mm |
| Number of Positions | 30 | 14 - 50 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.48 | |
| 10 | $ 16.97 | |||
| 25 | $ 15.75 | |||
| 50 | $ 14.89 | |||
| 100 | $ 14.08 | |||
| 250 | $ 13.07 | |||
| 500 | $ 12.36 | |||
A1RXB Series
IDC CABLE - APR50B/AE50G/X
| Part | Length [x] | Length [x] | Number of Positions | Cable Termination | Contact Finish Thickness | Contact Finish Thickness | Features | Shielding | Contact Finish | Pitch - Connector | Pitch - Connector | Connector Type | Pitch - Cable | Pitch - Cable | Number of Rows | Color | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A1RXB-5036G | 3 ft | 914.4 mm | 50 | IDC | 0.76 Ám | 30 Áin | Polarizing Key, Strain Relief | Unshielded | Gold | 0.1 in | 2.54 mm | Plug to Cable | 0.05 " | 1.27 mm | 2 | ||
TE Connectivity AMP Connectors A1RXB-2636G | 3 ft | 914.4 mm | 26 | IDC | 0.76 Ám | 30 Áin | Polarizing Key, Strain Relief | Unshielded | Gold | 0.1 in | 2.54 mm | Plug to Cable | 0.05 " | 1.27 mm | 2 | ||
TE Connectivity AMP Connectors A1RXB-5036M | 3 ft | 914.4 mm | 50 | IDC | 0.76 Ám | 30 Áin | Polarizing Key, Strain Relief | Unshielded | Gold | 0.1 in | 2.54 mm | Plug to Cable | 0.05 " | 1.27 mm | 2 | Multiple, Ribbon | |
TE Connectivity AMP Connectors A1RXB-1436M | 3 ft | 914.4 mm | 14 | IDC | 0.76 Ám | 30 Áin | Polarizing Key, Strain Relief | Unshielded | Gold | 0.1 in | 2.54 mm | Plug to Cable | 0.05 " | 1.27 mm | 2 | Multiple, Ribbon | |
TE Connectivity AMP Connectors A1RXB-2036G | 3 ft | 914.4 mm | 20 | IDC | 0.76 Ám | 30 Áin | Polarizing Key, Strain Relief | Unshielded | Gold | 0.1 in | 2.54 mm | Plug to Cable | 0.05 " | 1.27 mm | 2 | ||
TE Connectivity AMP Connectors A1RXB-1636M | 3 ft | 914.4 mm | IDC | 0.76 Ám | 30 Áin | Polarizing Key, Strain Relief | Unshielded | Gold | 0.1 in | 2.54 mm | Plug to Cable | 0.05 " | 1.27 mm | 2 | Multiple, Ribbon | 16 | |
TE Connectivity AMP Connectors A1RXB-2036M | 3 ft | 914.4 mm | 20 | IDC | 0.76 Ám | 30 Áin | Polarizing Key, Strain Relief | Unshielded | Gold | 0.1 in | 2.54 mm | Plug to Cable | 0.05 " | 1.27 mm | 2 | Multiple, Ribbon | |
TE Connectivity AMP Connectors A1RXB-1636G | 3 ft | 914.4 mm | IDC | 0.76 Ám | 30 Áin | Polarizing Key, Strain Relief | Unshielded | Gold | 0.1 in | 2.54 mm | Plug to Cable | 0.05 " | 1.27 mm | 2 | 16 | ||
TE Connectivity AMP Connectors A1RXB-3436G | 3 ft | 914.4 mm | 34 | IDC | 0.76 Ám | 30 Áin | Polarizing Key, Strain Relief | Unshielded | Gold | 0.1 in | 2.54 mm | Plug to Cable | 0.05 " | 1.27 mm | 2 | ||
TE Connectivity AMP Connectors A1RXB-3036G | 3 ft | 914.4 mm | 30 | IDC | 0.76 Ám | 30 Áin | Polarizing Key, Strain Relief | Unshielded | Gold | 0.1 in | 2.54 mm | Plug to Cable | 0.05 " | 1.27 mm | 2 |
Description
General part information
A1RXB Series

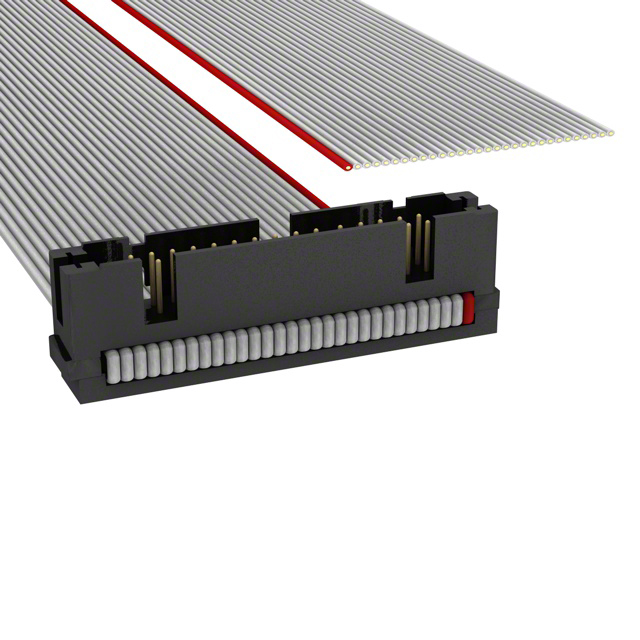

30 Position Cable Assembly Rectangular Plug to Cable 3.00' (914.40mm)
