0009483094

Active

Molex

CONN RCPT 9POS 0.156 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0009483094

Active

Molex

CONN RCPT 9POS 0.156 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.13
		10	$ 2.75
		80	$ 2.19

Description

General part information

000948 Series

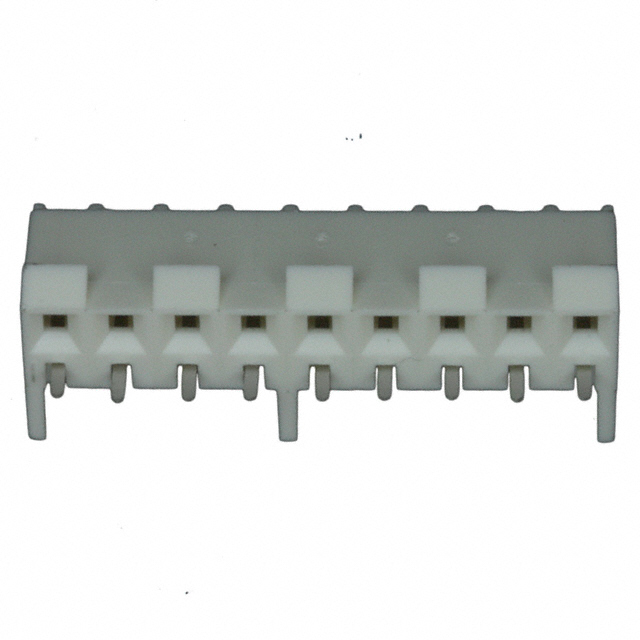

9 Position Receptacle, Bottom Entry Connector 0.156" (3.96mm) Through Hole Gold

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0009483094	000948 Series

Applications	Medical, General Purpose, Automotive, Telecommunications	Medical, General Purpose, Automotive, Telecommunications
Connector Type	Receptacle, Bottom Entry	Receptacle, Receptacle, Bottom Entry
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	15 µin	15 - 100 µin
Contact Finish Thickness - Mating	0.38 µm	0.38 - 15 Ąin
Contact Finish Thickness - Mating	-	0.38 Ąm
Contact Finish Thickness - Post	2.54 µm	1.52 - 2.54 Ąm
Contact Finish Thickness - Post	100 µin	60 - 100 Ąin
Contact Length - Post	-	0.145 - 0.16 in
Contact Length - Post	-	3.68 - 4.06 mm
Contact Length - Post [x]	3.18 mm	3.05 - 3.18 mm
Contact Length - Post [x]	0.125 in	0.12 - 0.125 in
Contact Material	Brass	Brass, Phosphor Bronze
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Current Rating (Amps)	4 A	4 - 5 A
Current Rating (Amps)	-	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp, Push-Pull
Features	Board Hooks	Board Hooks
Insulation Color	Natural	Natural
Insulation Height	-	0.308 - 0.45 in
Insulation Height	-	7.82 - 11.43 mm
Insulation Height [z]	0.449 in	0.449 in
Insulation Height [z]	11.4 mm	11.4 mm
Insulation Material	Polyester	Polyester
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Right Angle, Board Edge
Number of Positions	9	2 - 15
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature	-	105 C
Operating Temperature	-	-40 C
Operating Temperature [Max]	80 C	80 - 105 C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.156 in	0.156 in
Pitch - Mating	3.96 mm	3.96 mm
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	600 V	600 V

000948 Series

CONN RCPT 9POS 0.156 GOLD PCB

...

Part	Style	Insulation Height [z]	Insulation Height [z]	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions Loaded	Fastening Type	Contact Finish - Mating	Termination	Insulation Color	Connector Type	Number of Rows	Contact Material	Current Rating (Amps)	Mounting Type	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Features	Material Flammability Rating	Insulation Material	Contact Type	Number of Positions	Contact Shape	Applications	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height
Molex 0009483096	Board to Board, Cable	0.449 in	11.4 mm	0.12 in	3.05 mm	All	Locking Ramp	Gold	Solder	Natural	Receptacle	1	Brass	4.5 A	Through Hole	600 V	-40 °C	80 C	15 Ąin	0.38 Ąm	0.156 in	3.96 mm	Board Hooks	UL94 V-0	Polyester	Female Socket	9	Square	Automotive, General Purpose, Medical, Telecommunications	Tin	100 Ąin	2.54 Ąm
Molex 0009481095	Board to Board, Cable	0.449 in	11.4 mm	0.12 in	3.05 mm	All	Locking Ramp	Gold	Solder	Natural	Receptacle	1	Phosphor Bronze	5 A	Through Hole	600 V	-40 °C	105 ░C	0.38 µm		0.156 in	3.96 mm	Board Hooks	UL94 V-0	Polyester	Female Socket	9	Square	Automotive, General Purpose, Medical, Telecommunications	Tin	100 µin	2.54 µm	15 µin
Molex 0009482072	Board to Board, Cable	0.449 in	11.4 mm	0.125 in	3.18 mm	All	Locking Ramp		Solder	Natural	Receptacle, Bottom Entry	1	Brass	4 A	Through Hole	600 V	-40 °C	80 C	2.54 çm		0.156 in	3.96 mm	Board Hooks	UL94 V-0	Polyester	Female Socket	7	Square	Automotive, General Purpose, Medical, Telecommunications	Tin	100 µin	2.54 µm	100 çin
Molex 0009482120	Board to Board, Cable					All	Locking Ramp		Solder	Natural	Receptacle	1	Phosphor Bronze	5 A	Board Edge, Right Angle, Through Hole	600 V	-40 °C	105 ░C	2.54 çm		0.156 in	3.96 mm	Board Hooks	UL94 V-0	Polyester	Female Socket	12	Square	Automotive, General Purpose, Medical, Telecommunications	Tin	100 µin	2.54 µm	100 çin	0.145 in	3.68 mm	0.308 in	7.82 mm
Molex 0009483046	Board to Board, Cable	0.449 in	11.4 mm	0.12 in	3.05 mm	All	Locking Ramp	Gold	Solder	Natural	Receptacle	1	Brass	4.5 A	Through Hole	600 V	-40 °C	80 C	0.38 µm		0.156 in	3.96 mm	Board Hooks	UL94 V-0	Polyester	Female Socket	4	Square	Automotive, General Purpose, Medical, Telecommunications	Tin	100 µin	2.54 µm	15 µin
Molex 0009485136	Board to Board, Cable	0.449 in	11.4 mm	0.125 in	3.18 mm	All	Locking Ramp	Gold	Solder	Natural	Receptacle, Bottom Entry	1	Phosphor Bronze	4.5 A	Through Hole	600 V	-40 °C	105 ░C	0.38 µm		0.156 in	3.96 mm	Board Hooks	UL94 V-0	Polyester	Female Socket	13	Square	Automotive, General Purpose, Medical, Telecommunications	Tin	100 µin	2.54 µm	15 µin
Molex 0009482092	Board to Board, Cable	0.449 in	11.4 mm	0.125 in	3.18 mm	All	Locking Ramp		Solder	Natural	Receptacle, Bottom Entry	1	Brass	4 A	Through Hole	600 V	-40 °C	80 C	2.54 çm		0.156 in	3.96 mm	Board Hooks	UL94 V-0	Polyester	Female Socket	9	Square	Automotive, General Purpose, Medical, Telecommunications	Tin	100 µin	2.54 µm	100 çin
Molex 0009484138	Board to Board, Cable	0.449 in	11.4 mm	0.12 in	3.05 mm	All	Locking Ramp		Solder	Natural	Receptacle	1	Phosphor Bronze	5 A	Through Hole	600 V	-40 °C	105 ░C	1.52 Ám		0.156 in	3.96 mm	Board Hooks	UL94 V-0	Polyester	Female Socket	13	Square	Automotive, General Purpose, Medical, Telecommunications	Tin	60 µin	1.52 µm	60 Áin
Molex 0009485050	Board to Board, Cable	0.449 in	11.4 mm	0.125 in	3.18 mm	All	Locking Ramp	Gold	Solder	Natural	Receptacle, Bottom Entry	1	Brass	4 A	Through Hole	600 V	-40 °C	80 C	0.76 Ám		0.156 in	3.96 mm	Board Hooks	UL94 V-0	Polyester	Female Socket		Square	Automotive, General Purpose, Medical, Telecommunications	Tin	100 µin	2.54 µm	30 Áin
Molex 0009482155	Board to Board, Cable	0.449 in	11.4 mm	0.12 in	3.05 mm	All	Locking Ramp		Solder	Natural	Receptacle	1	Brass	4.5 A	Through Hole	600 V	-40 °C	80 C	2.54 çm		0.156 in	3.96 mm		UL94 V-0	Polyester	Female Socket	15	Square	Automotive, General Purpose, Medical, Telecommunications	Tin	100 µin	2.54 µm	100 çin
